| Brand |
Henkion |
| Model |

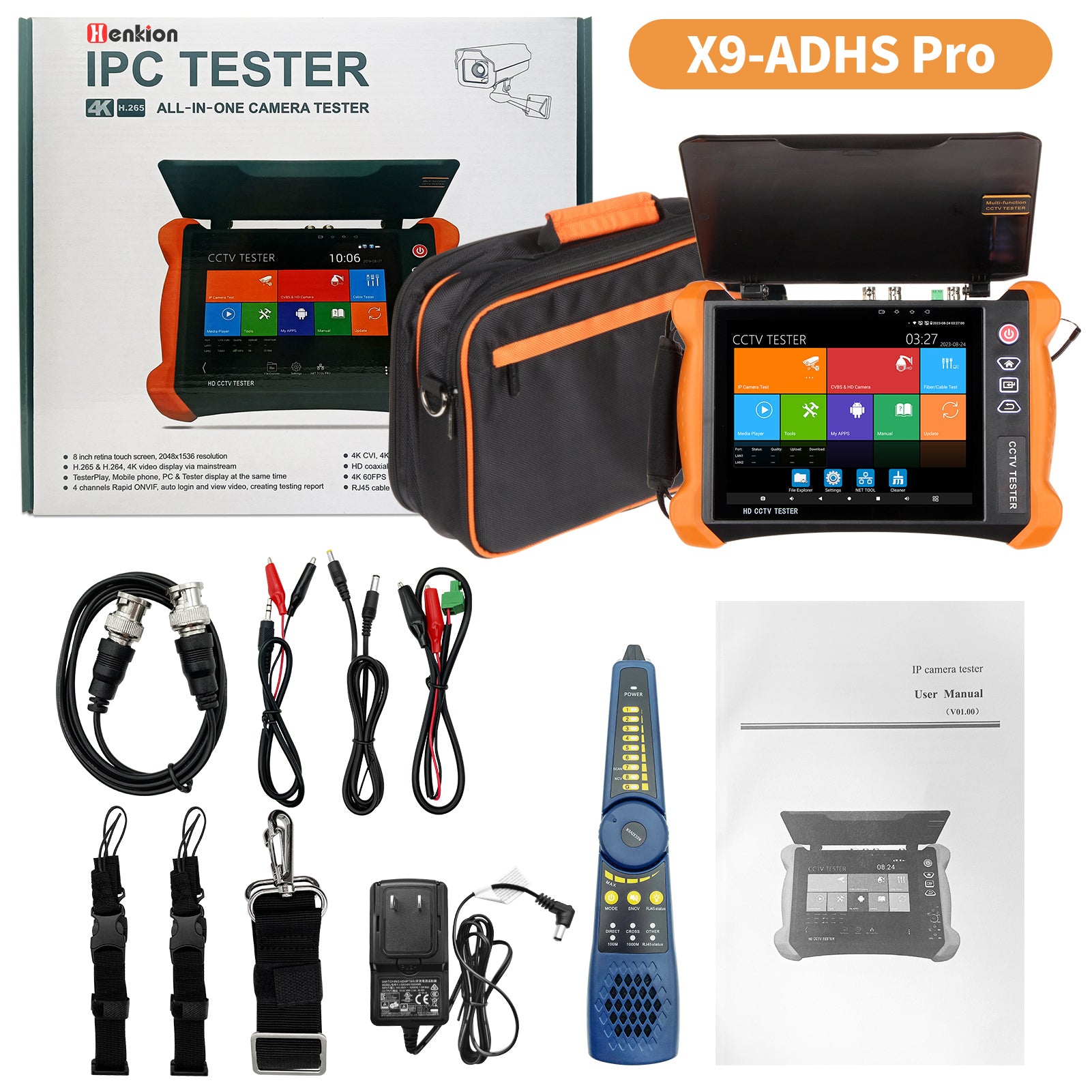

X9-ADHS Pro |
| CPU/RAM/ROM |
4-core 2.0GHz/2GB(LPDDR4)/16GB(EMMC) |
| Operating system |
Android 11.0 |

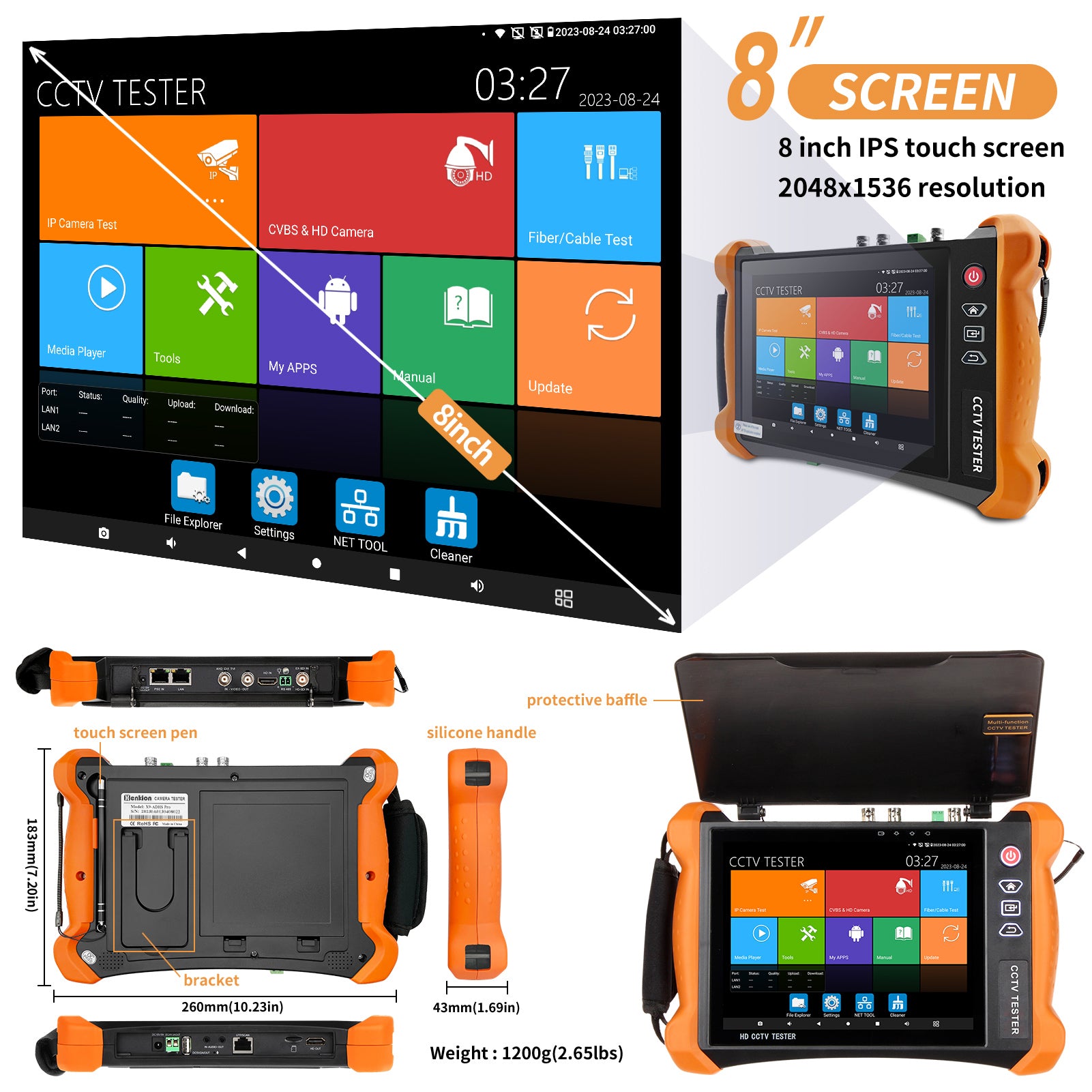

| Display |
8 inch IPS touch screen, 2048*1536 resolution, Backlit buttons |
| CVBS |
1 channel BNC input & 1 channel BNC looped output,
NTSC/PAL (Auto adapt) |
| PTZ control, RS485 control, Baud 600-115200bps,compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc |
| CVBS loop test, The tester send and receive CVBS color bar generator signal, check BNC cable |
|

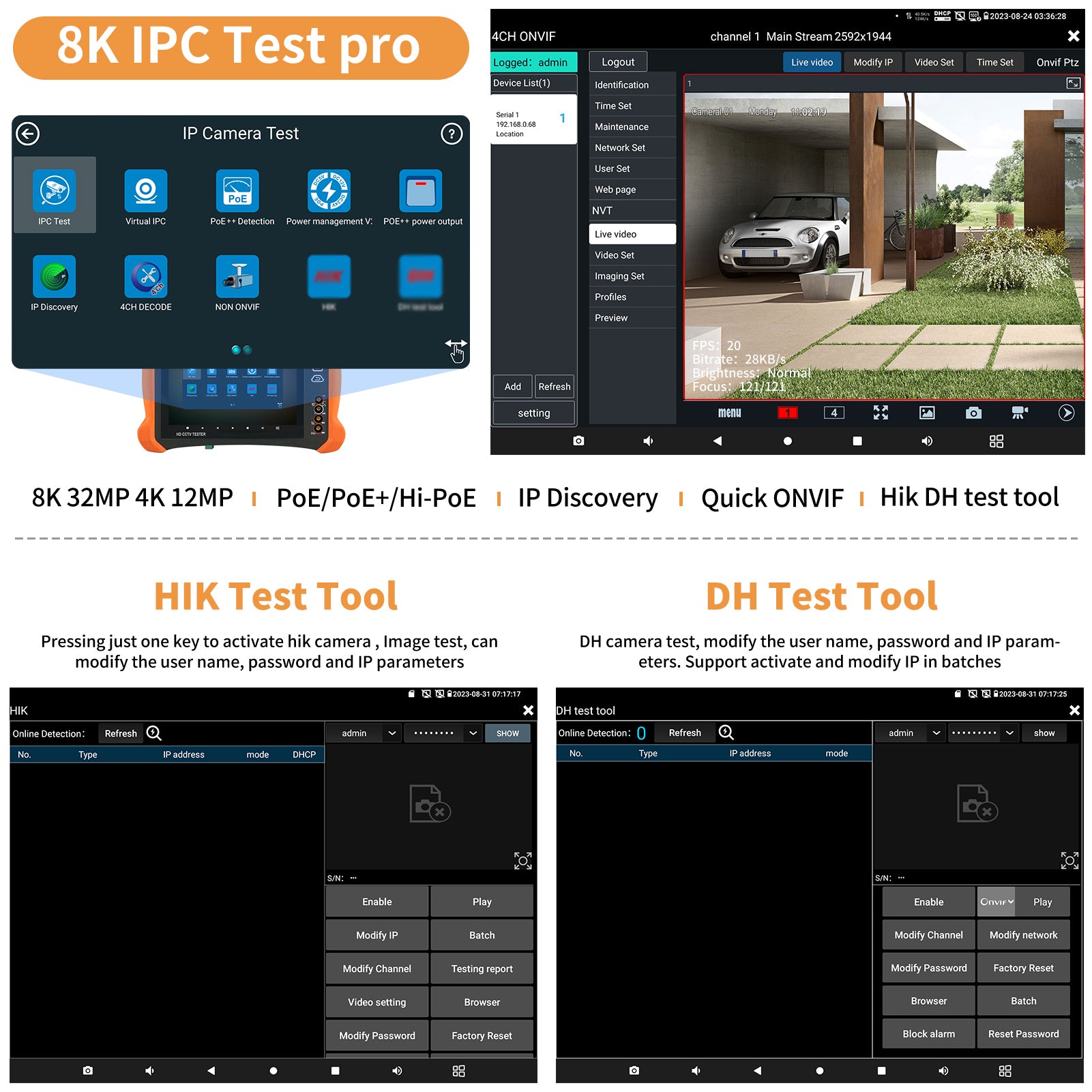

IP camera test
Max 8K 32MP |
| IP Discovery/ONVIF/IPC test /RTSP play /Client APK |
| Rapid Video, Auto view the video, create testing report |
| Hik test tool, pressing just one key to activate hikvision camera , Image test, can modify the user name, password and IP parameters |
Dahua test tool, Dahua camera test, modify the user name,
password and IP parameters |
|
| IP& CVBS test |
IP& CVBS test at the same time, converter test from analog to digital with dual test window |
| Coaxial HD test |

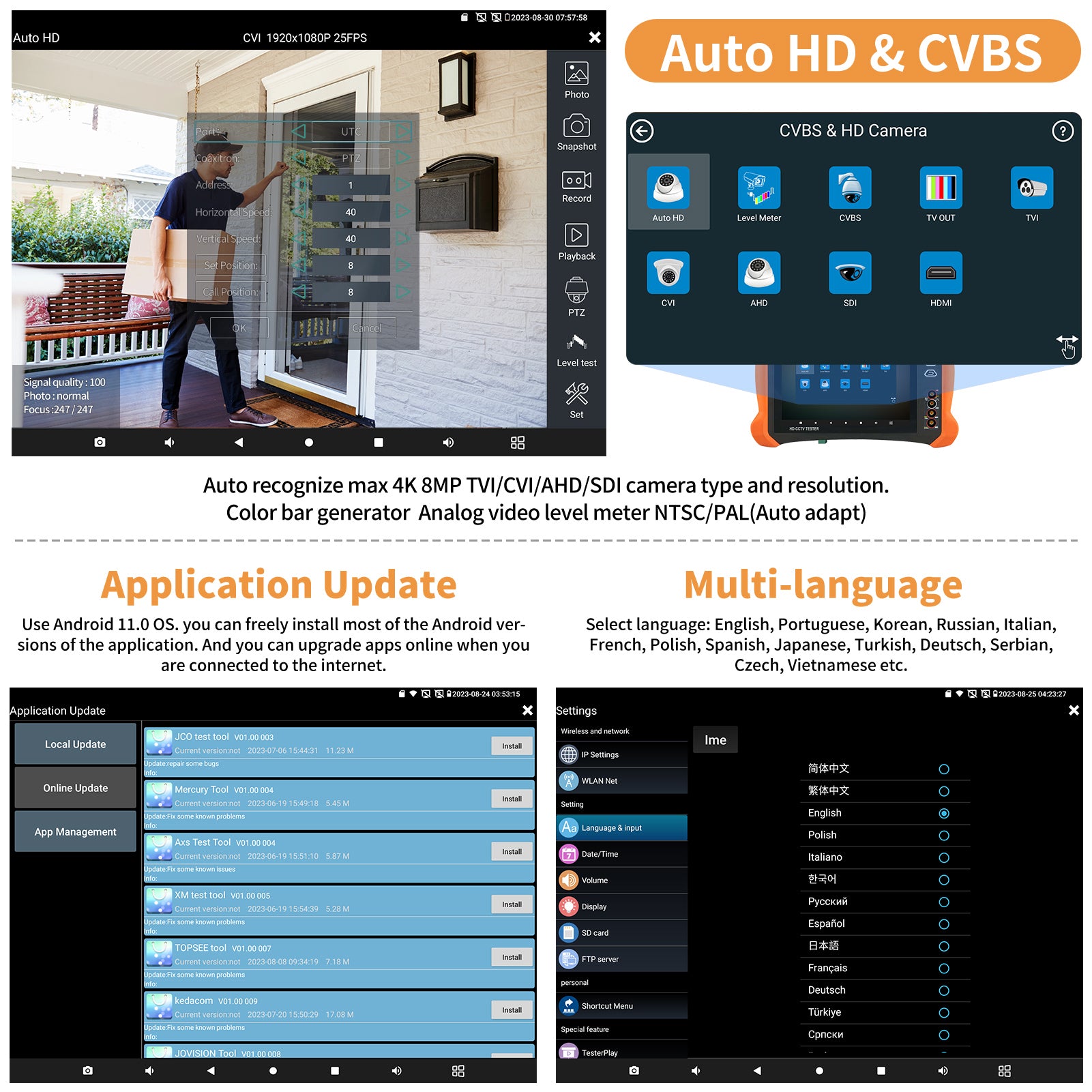

| 8MP TVI camera test, 3840 x 2160P 15FPS, UTC control/call OSD menu, Support coaxial audio |
| 8MP CVI camera test, 3840 x 2160P 12.5F/15F,UTC control/call OSD menu |
| 8MP AHD camera test, 3840 x 2160P 15FPS, UTC control/call OSD menu |
| 8MP EX-SDI, HD-SDI, 3G-SDI camera test, UTC control & call OSD menu |
|

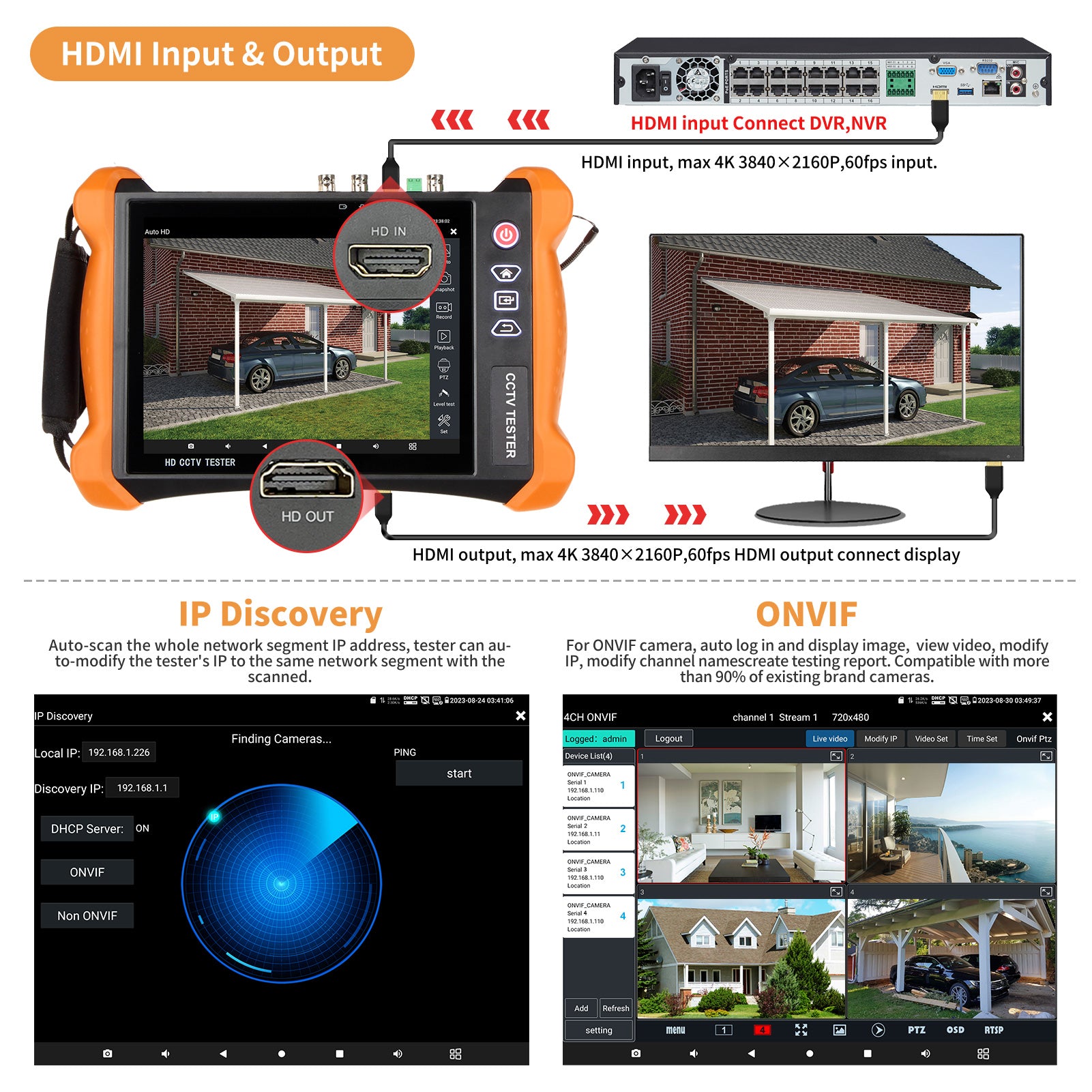

| HDMI input |
1 channel HDMI input, support 4K 3840x2160P 30fps |
| HDMI output |
1 channel HDMI output, support 4K 3840x2160P 60fps |
| VGA input |
N/A |
| Zoom Image |
4x zoom, to enlarge image, Screen snapshot, record ,save ,view and record and play back |
| Analog Video out |
color bar generator:Output one channel PAL/NTSC color bar video signal for testing monitor or video cable |
| Power output |
| DC5V/2A:USB DC5V/2A power output, as a power bank |
| DC12V/3A:DC12V/3A power output ,supply temporarily power for the camera |
| DC24V/2A:DC24V/2A power output ,supply temporarily power for the speed dome camera
|

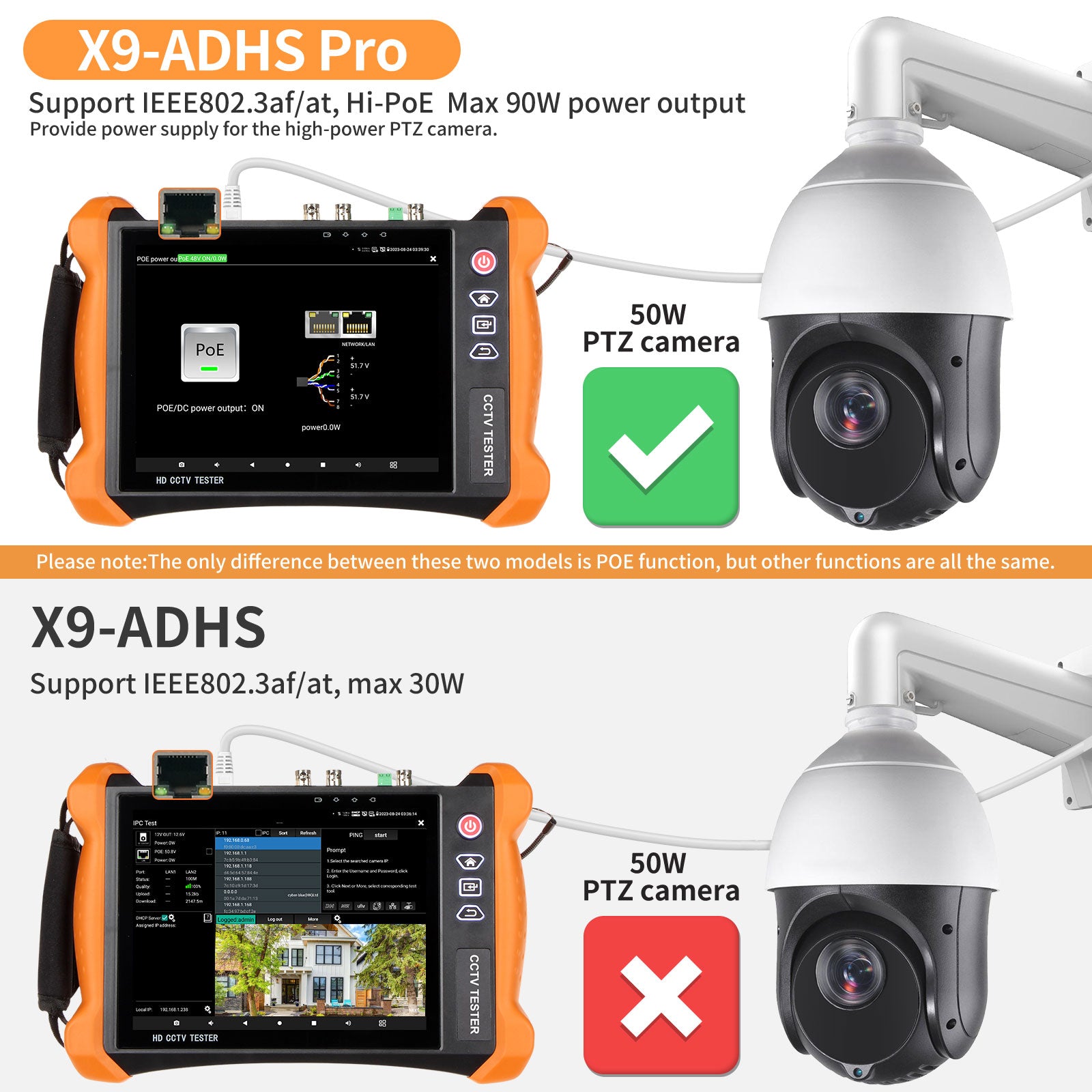

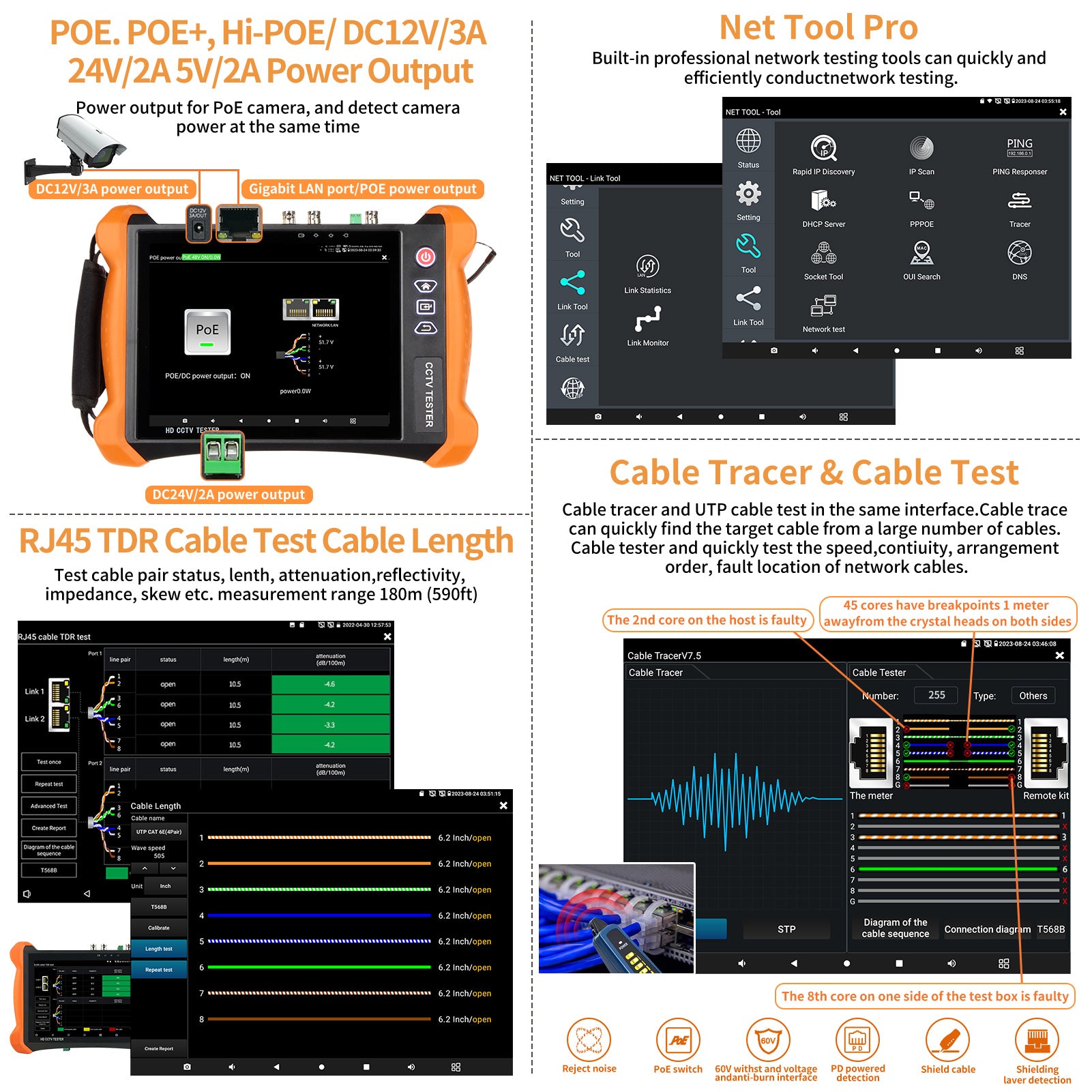

| PoE:Standard PoE, POE+ power output, max power 25.5W.
|
|
| Cable test |

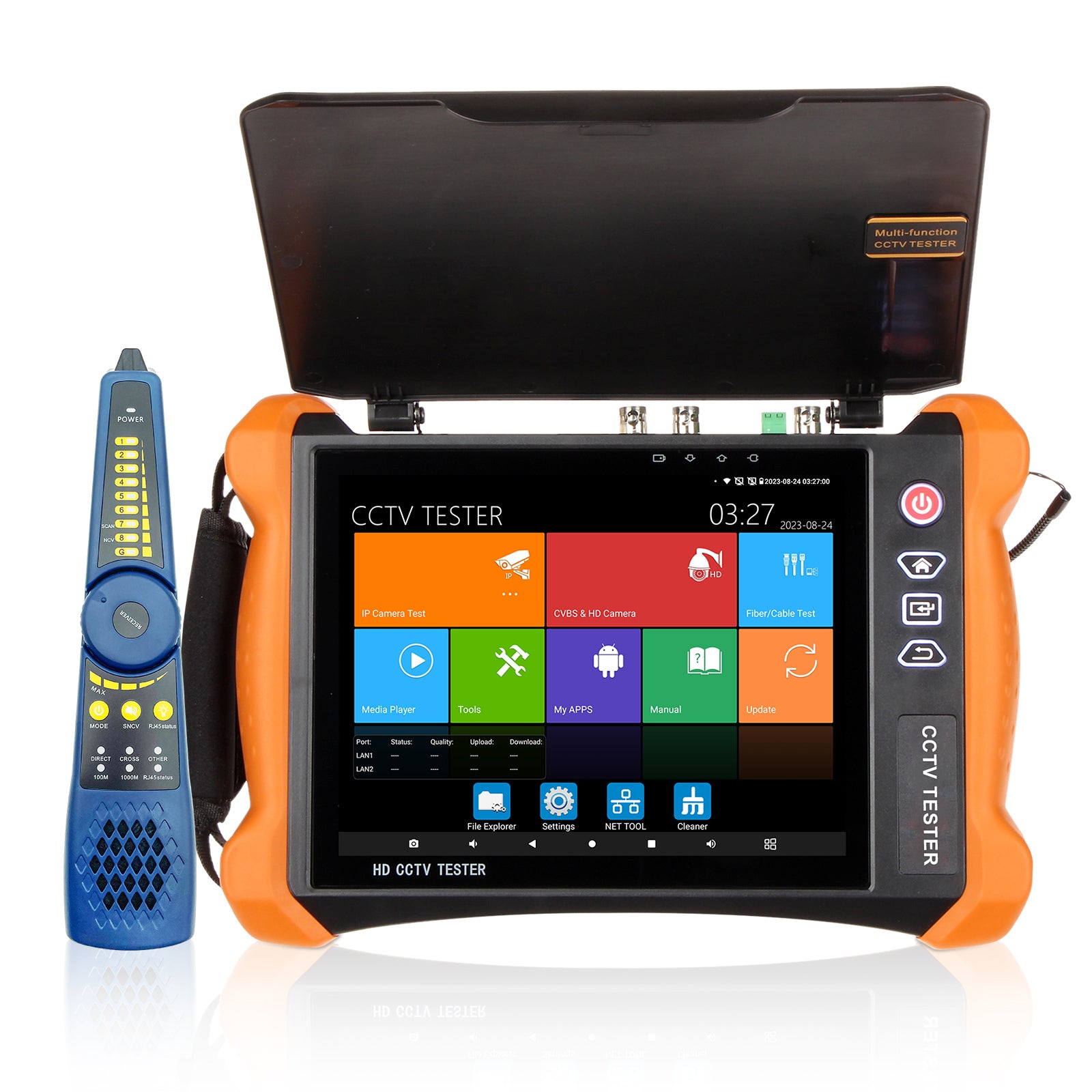

Cable tracer
(Wire Finder):Contains a digital cable tracer. search BNC cable, network cable and telephone cable from the mess cables.
Support AC voltage detector(NVC). voltage range: AC12V-1000V, Frequency: 50/60Hz, Alarm mode: sound and light double alarm, Safety class: CAT.III 1000V / CAT.IV 600V, CE
|
| UTP cable test:Test UTP cable connection status and display on the screen. Read the number on the screen |
| RJ45 TDR cable test:Test cable pair status, length, attenuation, reflectivity, impedance, skew etc, measurement range 180M. |
| Color bar test:Support CVI TVI AHD color bar test, max 4K 8MP 15fps. Support CVBS color bar test, NTSC and PAL switchable. |
|
Digital Multimeter
(DMM)
|
N/A |
Optical power meter
(OPM)
|
N/A |
Visual fault locator
(VFL) |
N/A |
| TDR cable test (hardware support) |
N/A |
| Video level test |
Analog video level meter, peak video signal level, SYNC signal level |

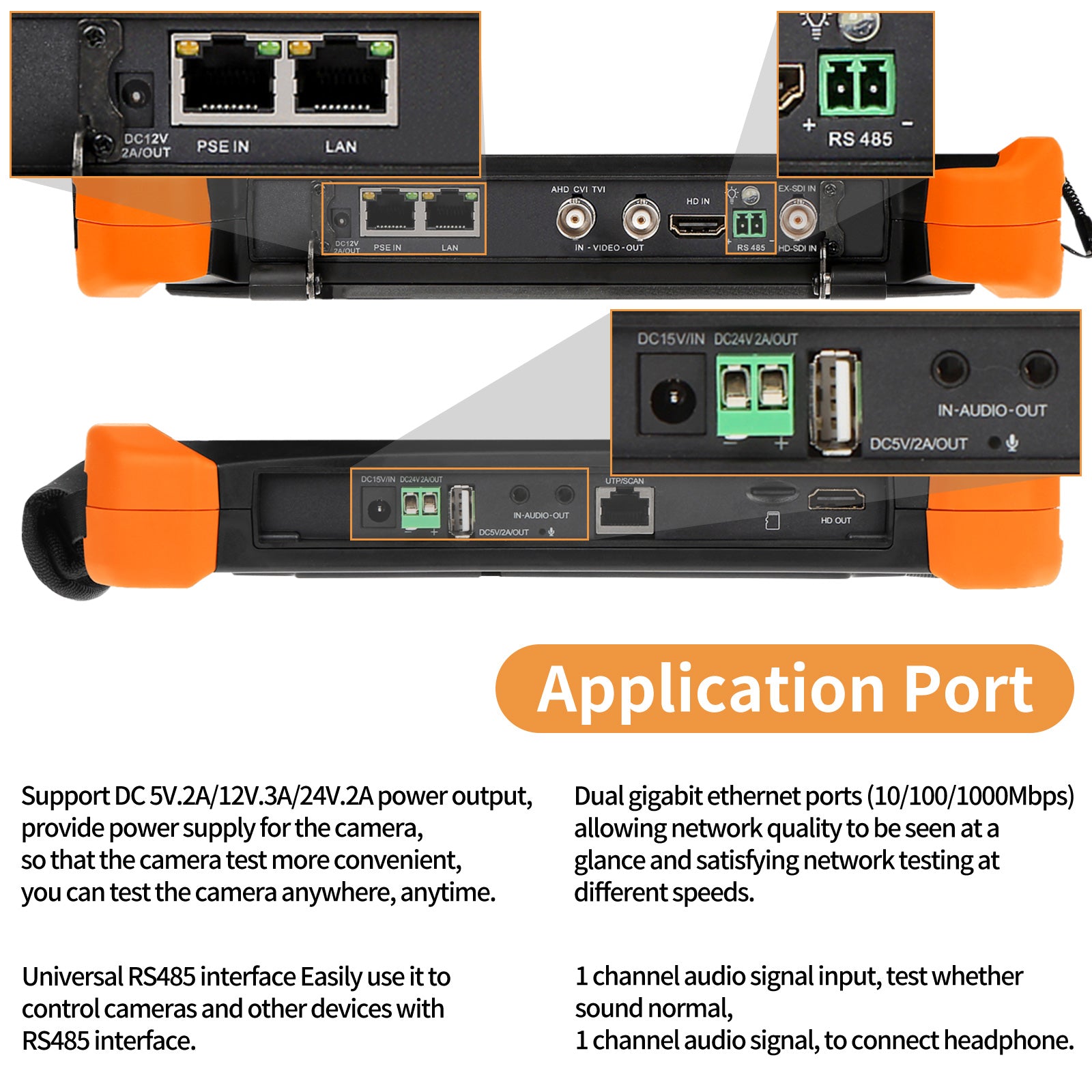

| Network interface |
RJ45 Dual Gigabit Ethernet ports, 10/100/1000Mbps adaptive |
| Network test |
Trace route, Link monitor, DHCP server, port flashing, Ping test |

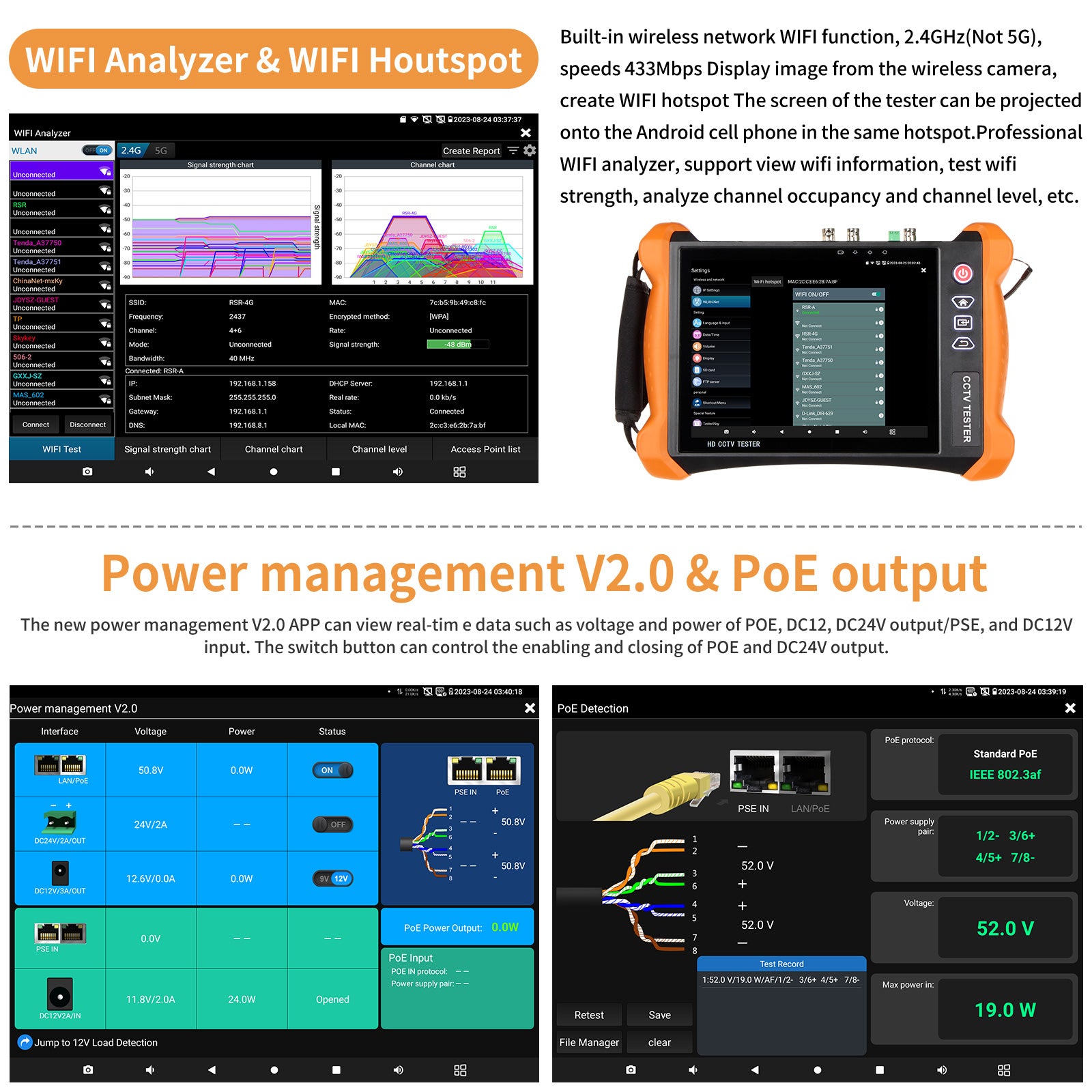

| Wi-Fi |
Built in WIFI, 2.4GHz and 5GHz, speeds:433Mbps |
| Audio test |
1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone |
| Data monitor |
Captures and analyzes the command data from controlling device, also can send hexadecimal |
Power
management V2.0 |
View real-time data such as voltage and power of POE, DC12, DC24V output/PSE, and DC12V input. |
| Drop-down menu |
You can select PoE power switch, IP setting, WLAN switch, HDMI IN functions etc in any interface |
| TesterPlay |
screen projection: tester, mobile phone and PC display at the same time (only for android mobile phone) |
| Power supply |
DC15V/2.4A |
| Battery |
Built-in 11.1V Lithium polymer battery,3350mAh, 37.19Wh |
| Rechargeable |
After charging 2.5 hours, normal working time 8 hours |
| Operation setting |
OSD menu, select your desired language: English, Polish, Italian, Korean, Russian, Spanish, Japanese, French, German, Turkish, Portuguese, Vietnamese, etc. |
| Auto off |
1 to 30(mins) |
| Working Temperature |
'-10℃ to +50℃ (14℉ to 122℉) |
| Working Humidity |
30% to 90% |
| Dimension/Weight |
Tester: 260x183x43mm(10.23x7.2x1.69inch) / 1200g(2.65lbs)
Package: 350x300x100mm(13.78x11.81x3.94) / 2740g(6.04lbs) |
