| Brand |
Henkion |
| Model |
E89
|
| Operating system |
Android 10.0 |
| Display |

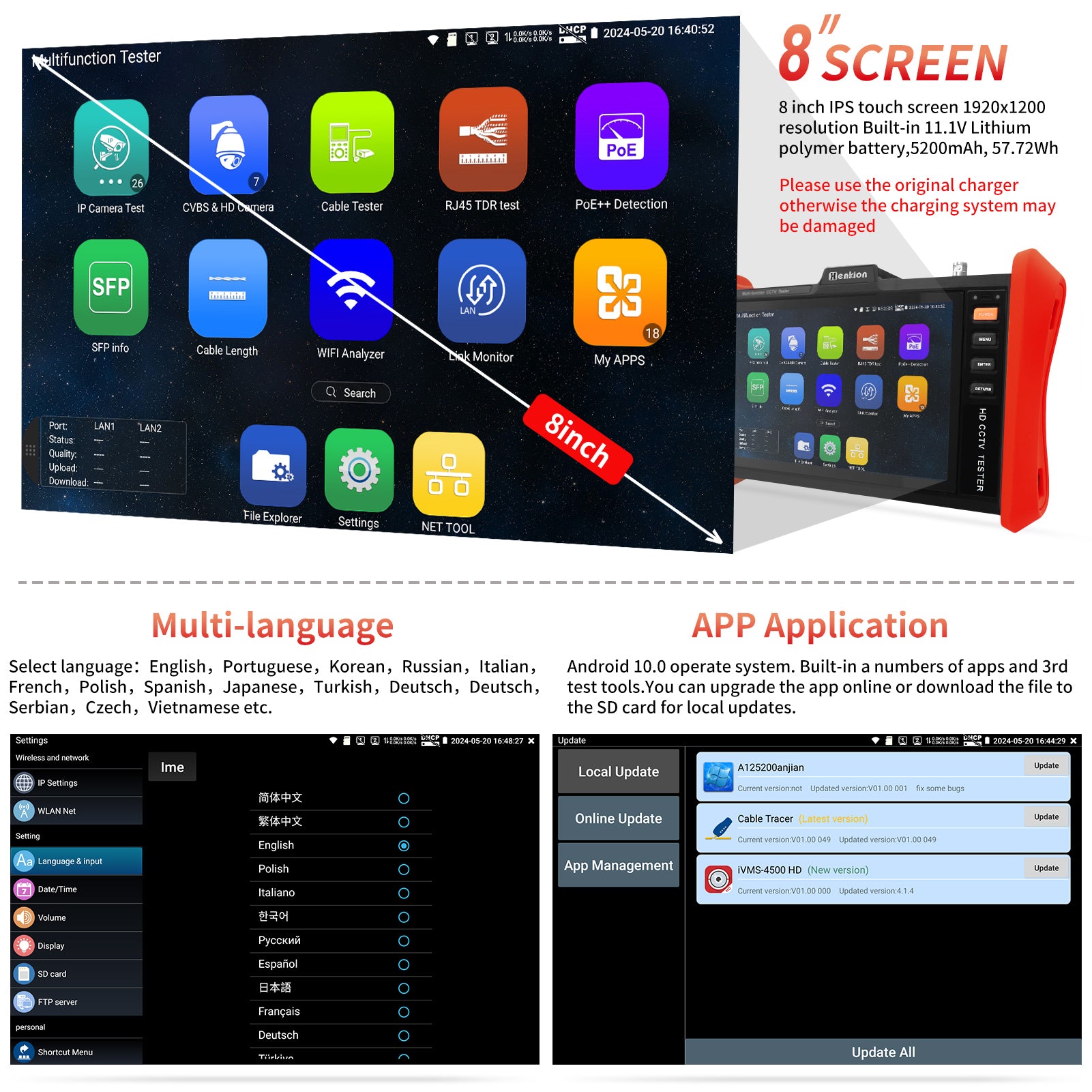

8 inch IPS touch screen, 1920x1200 resolution, Backlit buttons |
| Operation method |
Touch screen + keys |
| CPU |
1.6GHz, 4 cores |
| RAM(DDR) |
1GB |
| FLASH(EMMC) |
8GB |

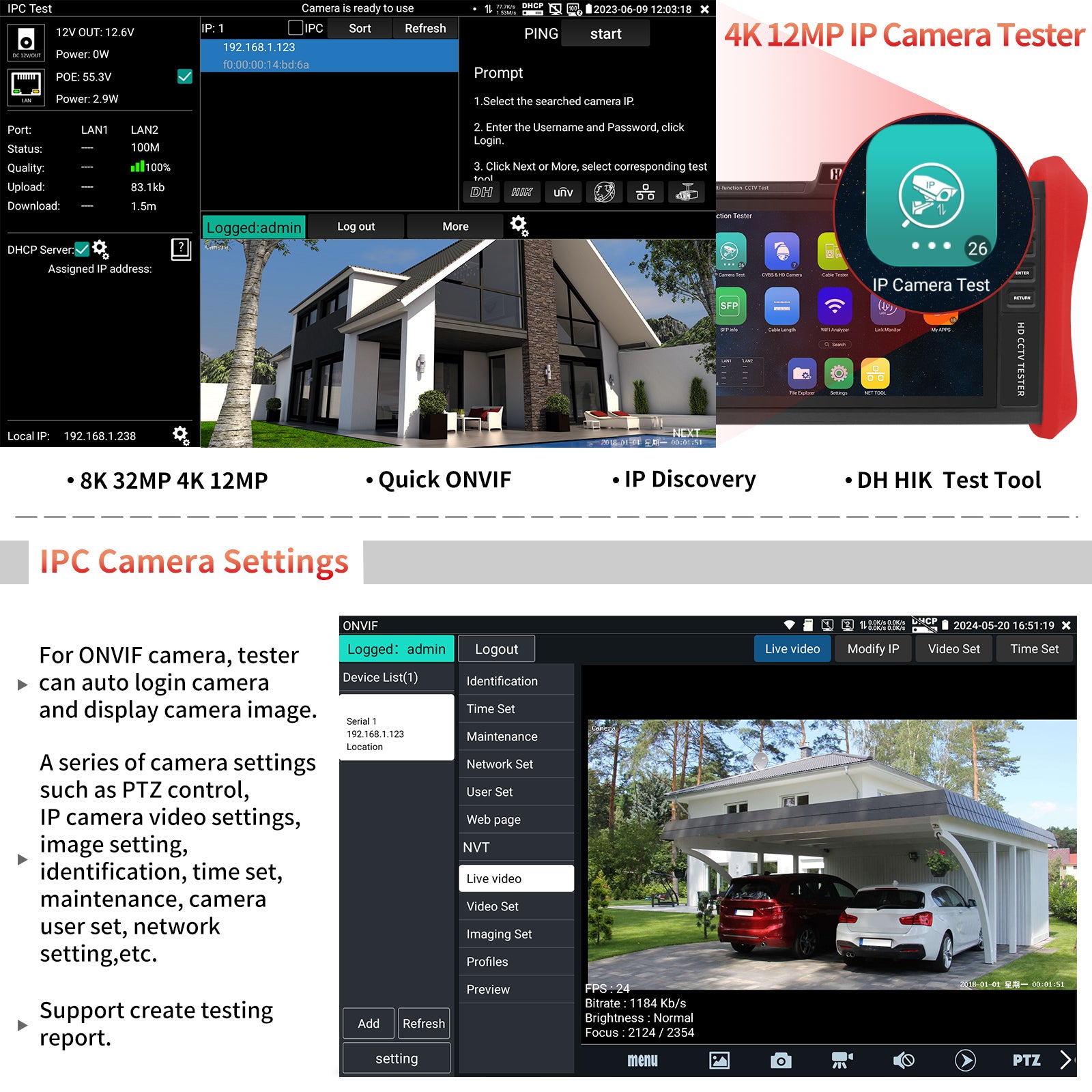

| IP camera test |
| Support max 4K 12MP IP camera test via main stream, Support ONVIF protocol
|

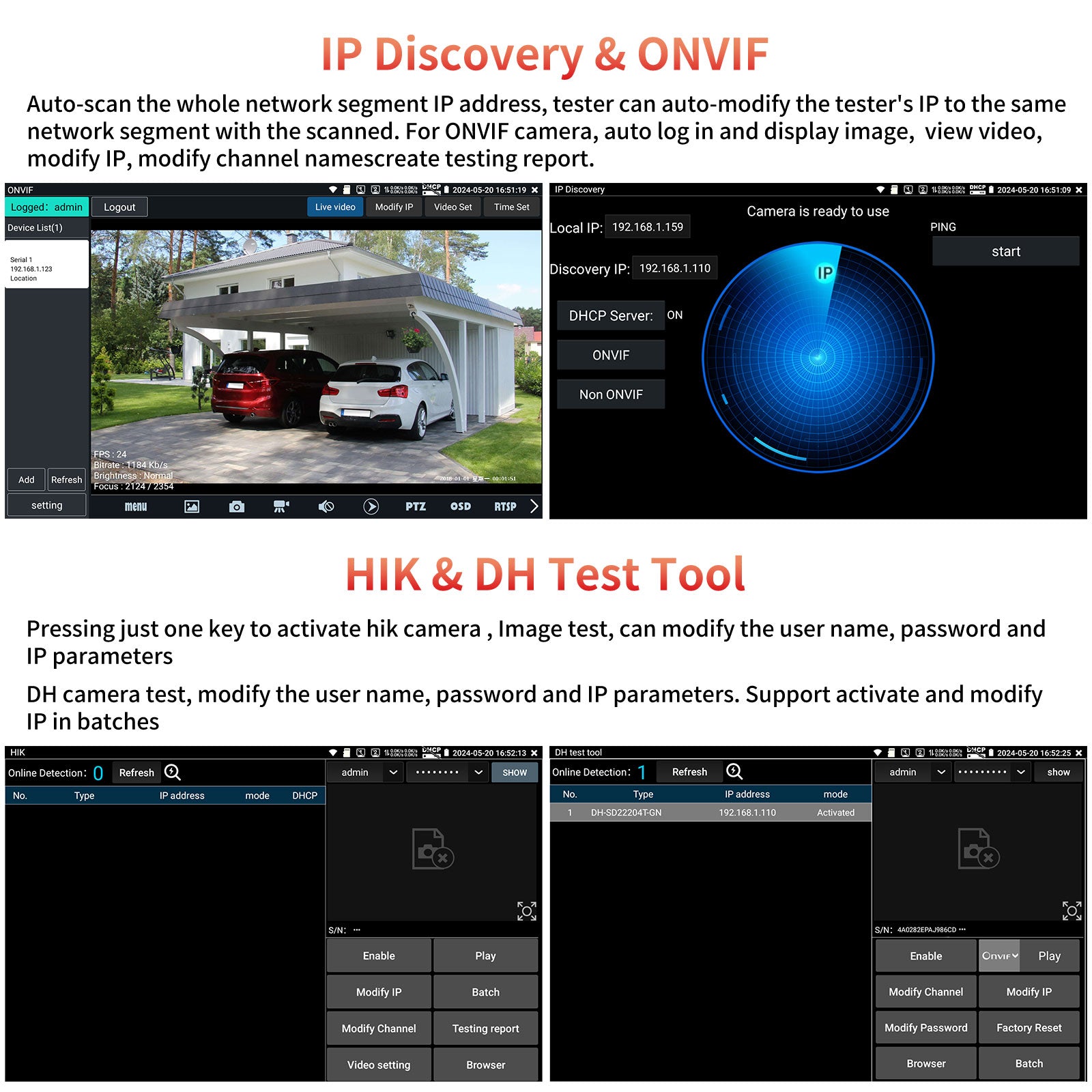

| IP Discovery/Quick ONVIF/IPC test /RTSP play /Client APK
|
| Rapid Video: Auto view the video, create testing report
|
| Hik test tool: support batch activate for Hikvision cameras and modify IP address, modify password etc. Self-defined modify channel name, can quickly change video, open wide dynamic mode. Factory restore, etc.
|
| DH test tool: support batch activate for Dahua cameras and modify IP address, username and password. Self-defined modify channel name.
|
|

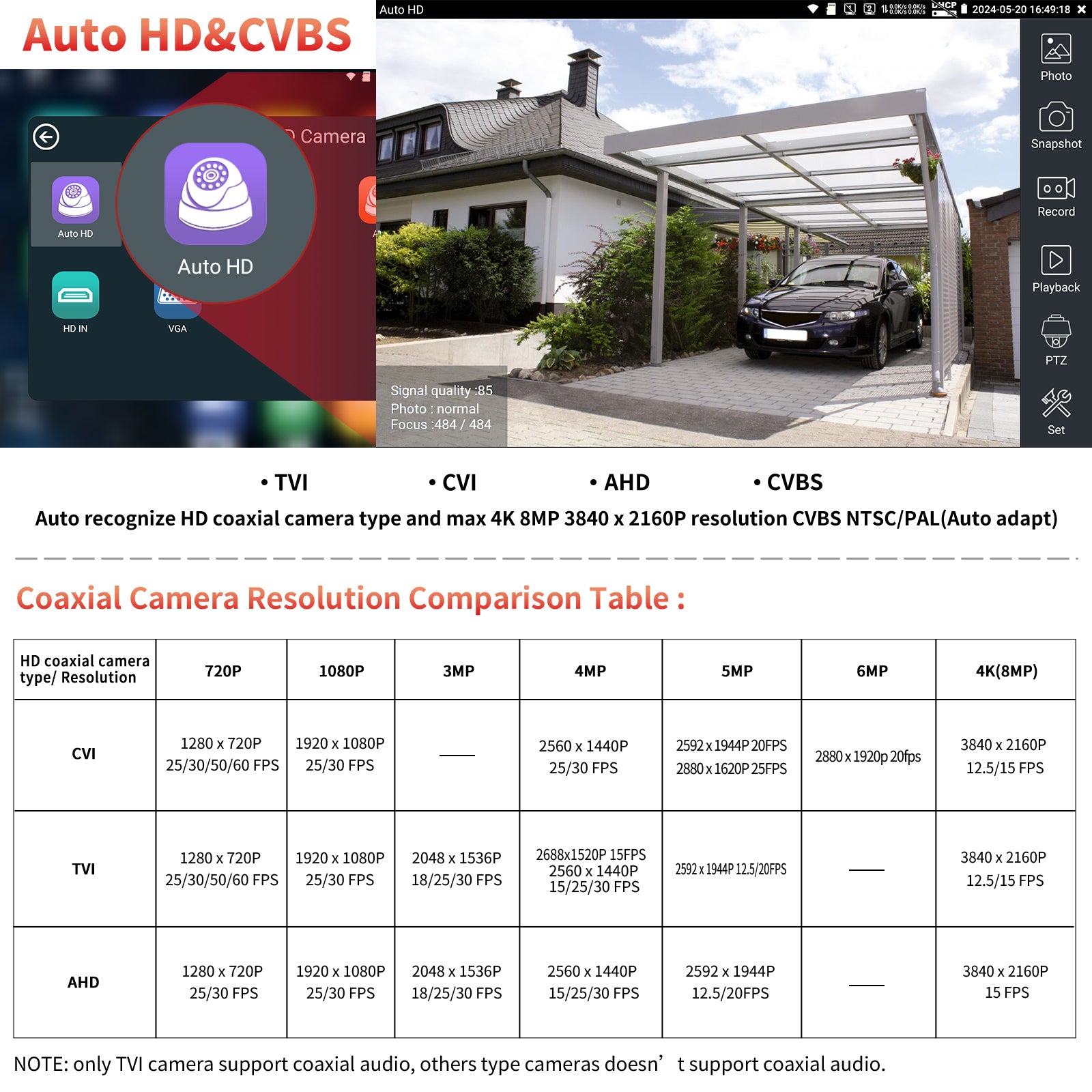

| Coaxial HD camera test |
TVI camera test, support coaxial audio, UTC control & call OSD menu
4K/8MP_3840x2160p 12.5/15FPS, 5MP_2592x1944p12.5/20FPS, 4MP_2688x1520p 15FPS,4MP_2560x1440P 15/25/30FPS, 3MP_2048x1536p 18/25/30FPS,1920x1080p 25/30FPS,1280x720p 25/30/50/60FPS
|
CVI camera test, support UTC control & call OSD menu
4K/8MP_3840x2160p 12.5/15FPS,6MP_2880x1920p 20FPS, 5MP_2592x1944P 20FPS,5MP_2880 x1620P 25 FPS,4MP_2560x1440p 25/30FPS,1920x1080p 25/30FPS,1280x720p 25/30/50/60FPS
|
AHD camera test, support UTC control & call OSD menu
4K/8MP_3840x2160p 15FPS, 5MP_2592x1944p12.5/20FPS, 4MP_2560x1440p 15/25/30FPS, 3MP_2048x1536p 18/25/30FPS,1920x1080p 25/30FPS,1280x720p 25/30FPS
|
|
| Coaxial test |
| 1 channel BNC input CVBS camera test, NTSC/PAL (Auto adapt)
|
| Analog video level test, Measure the peak-to-peak value, sync level, and burst level of the video signal.
|
| PTZ control, RS485 control, Baud 600-115200bps, compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc
|
|
| HDMI & VGA |

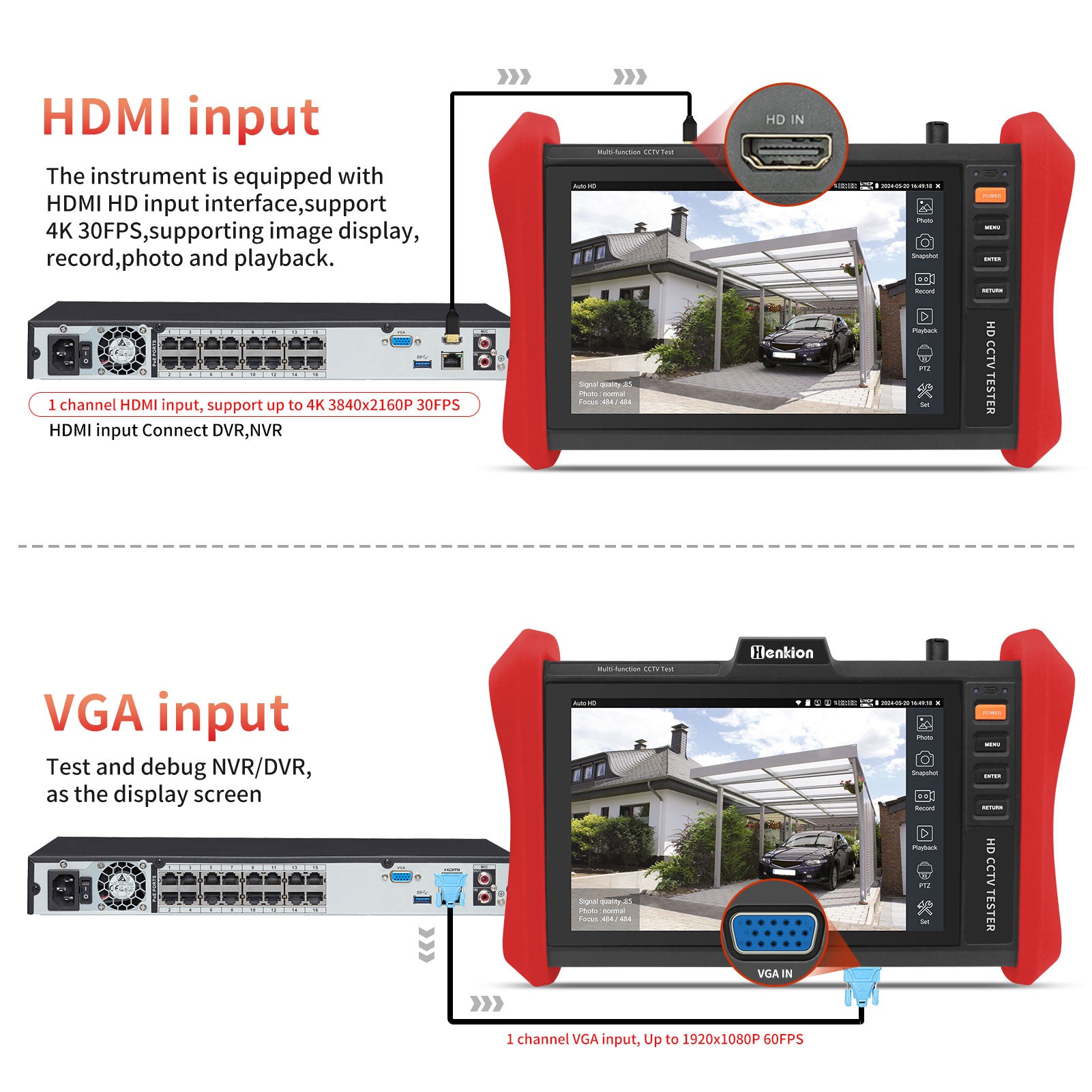

HDMI input, support up to 4K 3840x2160P 30FPS
4K_3840×2160 24/25/30FPS, 2K_2560×1440P 60FPS, 1920×1080p 24/25/30/50/59/60FPS, 1920×1080i 50/58/60FPS, 1280×720p 25/30/50/59/60FPS, 720×480p/720×576p/1024×768p/1280×1024p/1600×1200p/1440×900p/800×600p 60FPS
|
VGA input, Up to 1920x1080P 60FPS
1920x1080P 60FPS, 1280x1024/960/800/768/720P 60FPS, 1152x870P 60FPS, 1024x768P 60FPS, 800x600P 60FPS, 640x480P 60FPS
|
|
| Zoom Image |
4x zoom, enlarge image, Screen snapshot, record, save, view and record and play back |
| Power output |

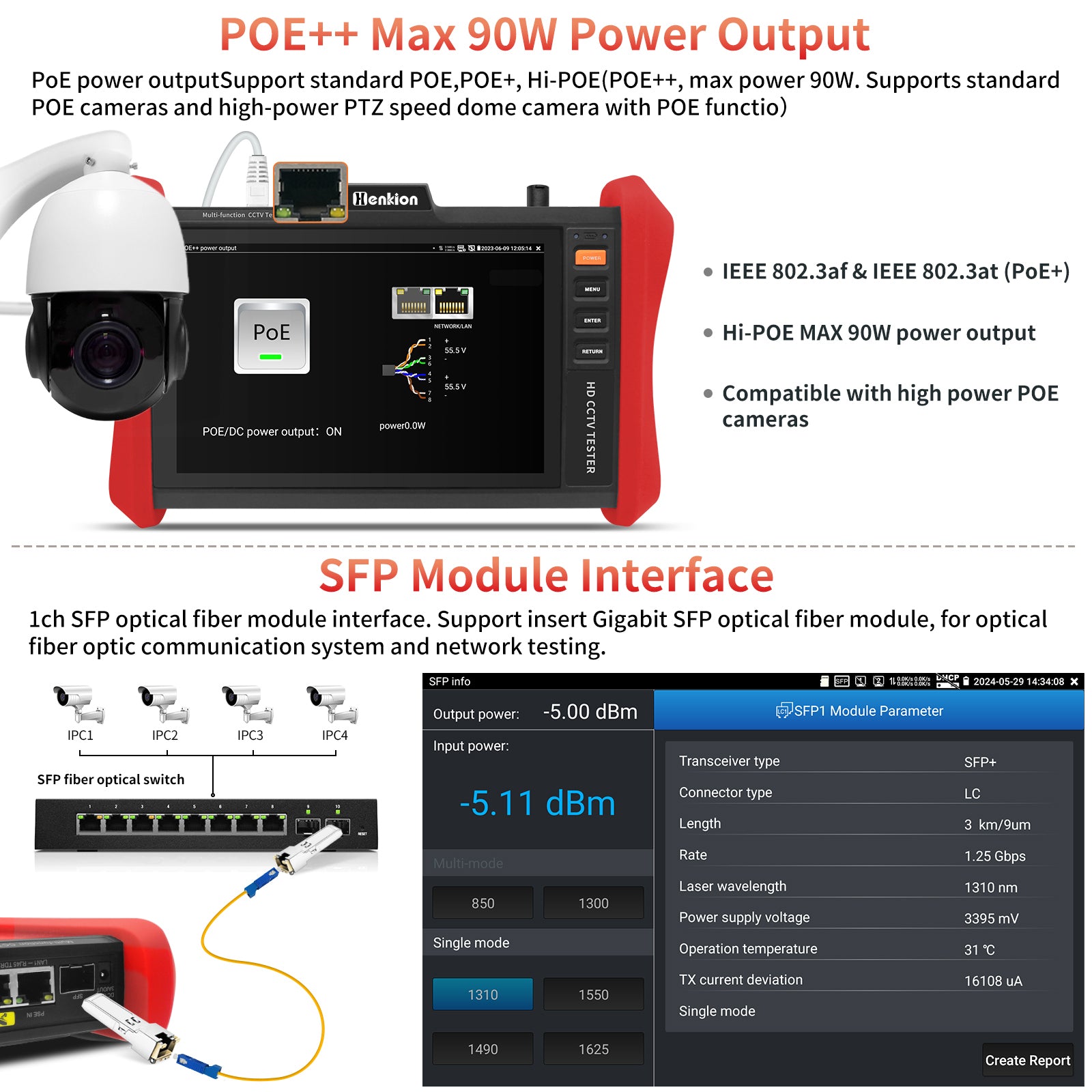

| PoE power output: Support standard POE,POE+,Hi-POE(POE++, max power 90W. Supports standard POE cameras and high-power PTZ speed dome camera with POE function)
|
| DC5V/2A power output, powered USB canera and as power bank, and connect USB and Mouse
|
|
| Cable test |
Cable tracer: Not included
(You can purchase accessories to add this function.)
|
| UTP cable test: Test UTP cable connection status and display on the screen. Read the number on the screen, and detect near-end, mid-end and far-end fault test of RJ45 cable plug
|

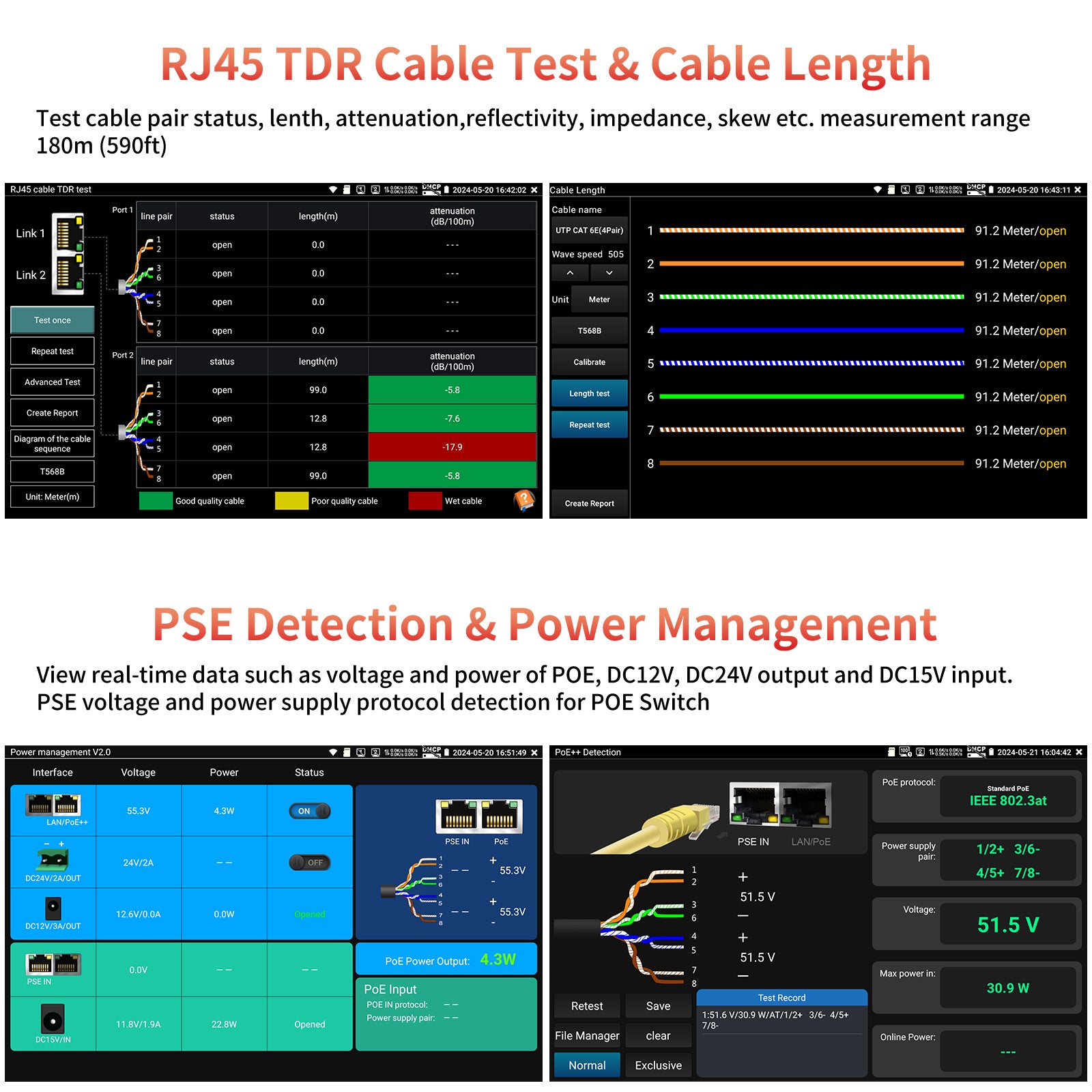

| RJ45 cable TDR test: Test cable pair status, length, attenuation, reflectivity, impedance, skew etc. measurement max range 180meter(590fts).
|
| Cable length test: Measure the disconnection (open circuit status) position of BNC cables, network cables, telephone lines and other cables. The maximum test distance is 3KM(9842fts). Short circuit length detection is not supported.
|
|
Digital Multimeter
(DMM)
|
N/A |
Optical power meter
(OPM)
|
N/A |
Visual fault locator
(VFL)
|
N/A |

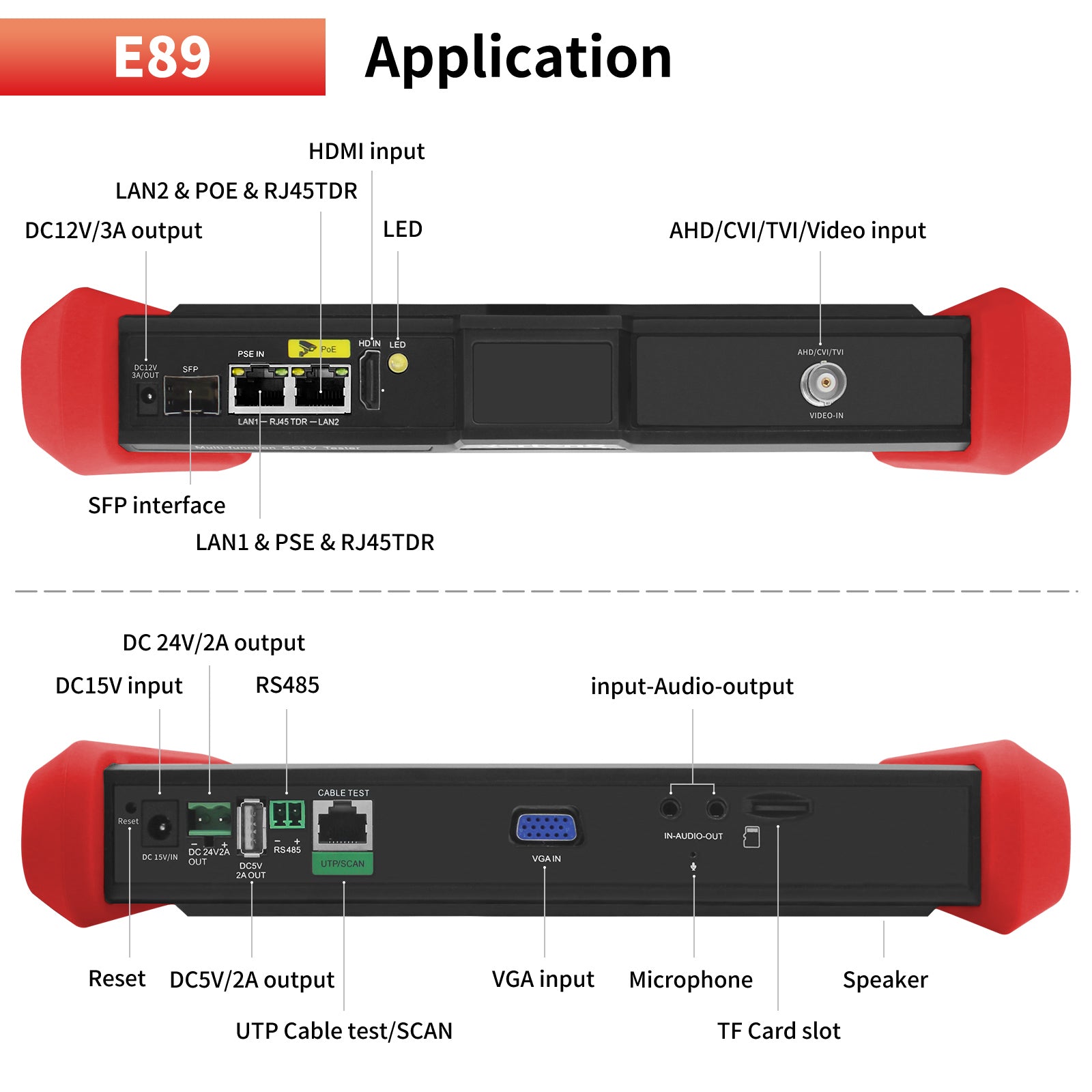

| Network interface |
Dual Gigabit Ethernet ports, RJ45, 10/100/1000M adaptive interface |
| Gigabit SFP |
1ch SFP optical fiber module interface, support insert Gigabit SFP optical fiber module, for optical fiber network testing |
| Network test |
Trace route, Link monitor, DHCP server, port flashing, Ping test
|
| WiFi |
Built in WIFI, speeds 150Mbps, support 2.4GHz |
|

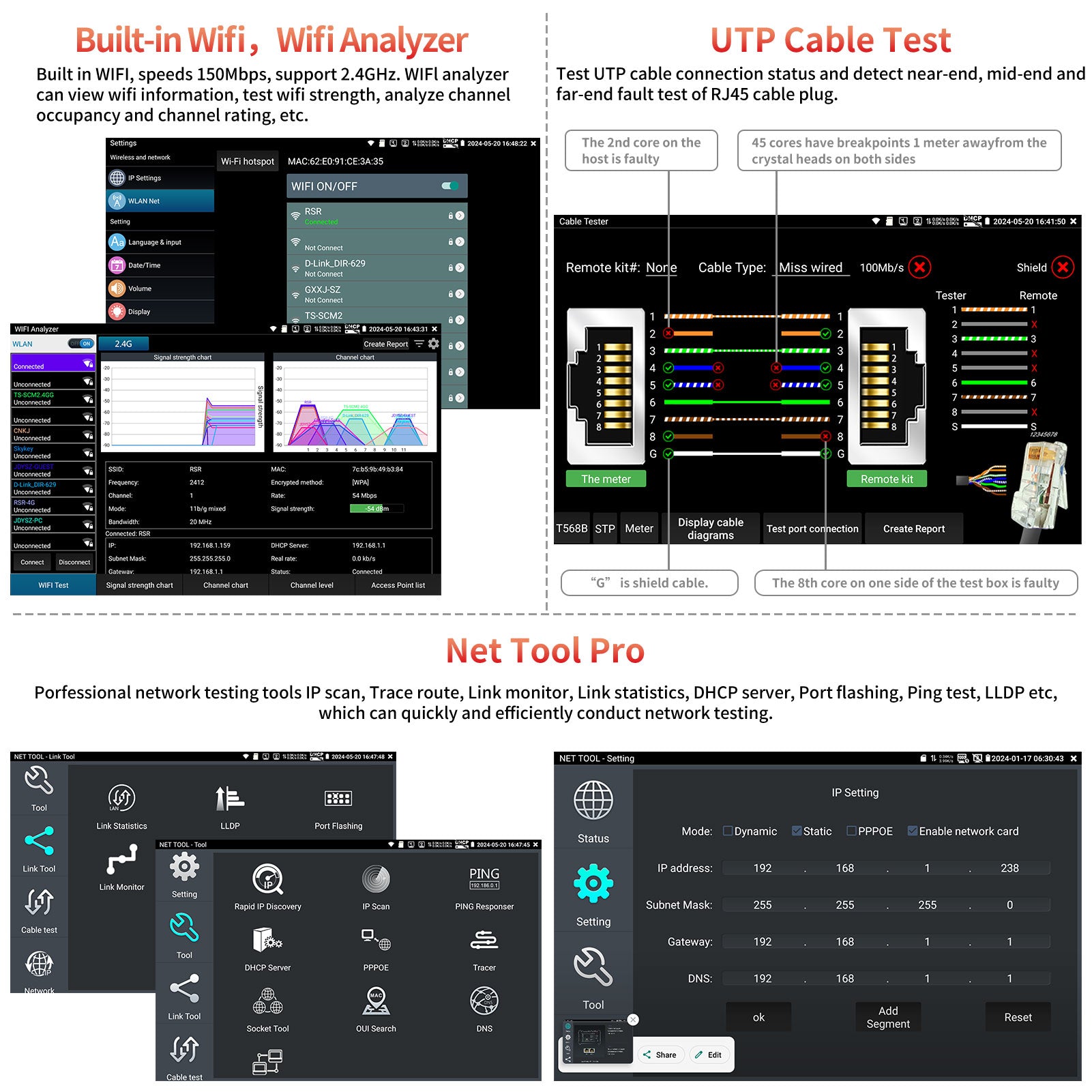

WiFi analyzer
|
Built-in WIFl analyzer can view wifi information, test wifi strength,analyze channel occupancy and channel rating, etc. |
| Built-in camera |
N/A |
| Laser Distance meter |
N/A |
| Laser Distance meter |
Screen projection: Tester, mobile phone and PC display at the same time (iOS devices not supported)
|
| Audio test |
1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone
|
| RS485 |
1ch, Support pan/tilt control, Baud 600-115200bps, compatible with more than 30 protocols such as for PELCO-D/P, for Samsung, for Panasonic, for Lilin, for Yaan etc |
| Data monitor |
Data monitor |
| Power management V2.0 |
View real-time data such as voltage and power of POE, DC12V, DC24V output and DC12V input. PSE voltage and power supply protocol detection for POE Switch |
| POE/PSE detect |
Quickly detect the PoE switch port status, display the power supply voltage and line connection status, and support PoE protocol standard 802.3at/af or non-standard detection. |
| Drop-down menu |
You can select PoE power switch, IP setting, CVBS, LAN info, HDMI IN functions etc in any interface
|
| Operation setting |
OSD menu, select your desired language: English, Portuguese, Korean, Russian, Italian, French, Polish, Spanish, Japanese, Turkish, Deutsch, Serbain, Czech, Vietnamese etc |
| Screen blackout protective cover |
N/A |
| External power supply |
DC15V/1.6A |
| Battery |
Built-in 11.1V Lithium polymer battery, 5200mAh, 57.72Wh |
| Rechargeable |
After fast charging 3.5 hours, normal working time 11 hours(Without supplying power to other devices) |
| Auto off |
5 to 30 (mins) |
| Working Temperature |
-10℃ to +50℃ (14℉ to 122℉) |
| Working Humidity |
30% to 90% |
| Dimension/Weight |
Tester: 275x170x48mm(10.83x6.7x1.89inch) / 1090g(2.4lbs)
Package: 320x290x100mm(12.6x11.4x3.94inch) / 2040g(4.5lbs) |
