| Brand |
Henkion |
| Model |

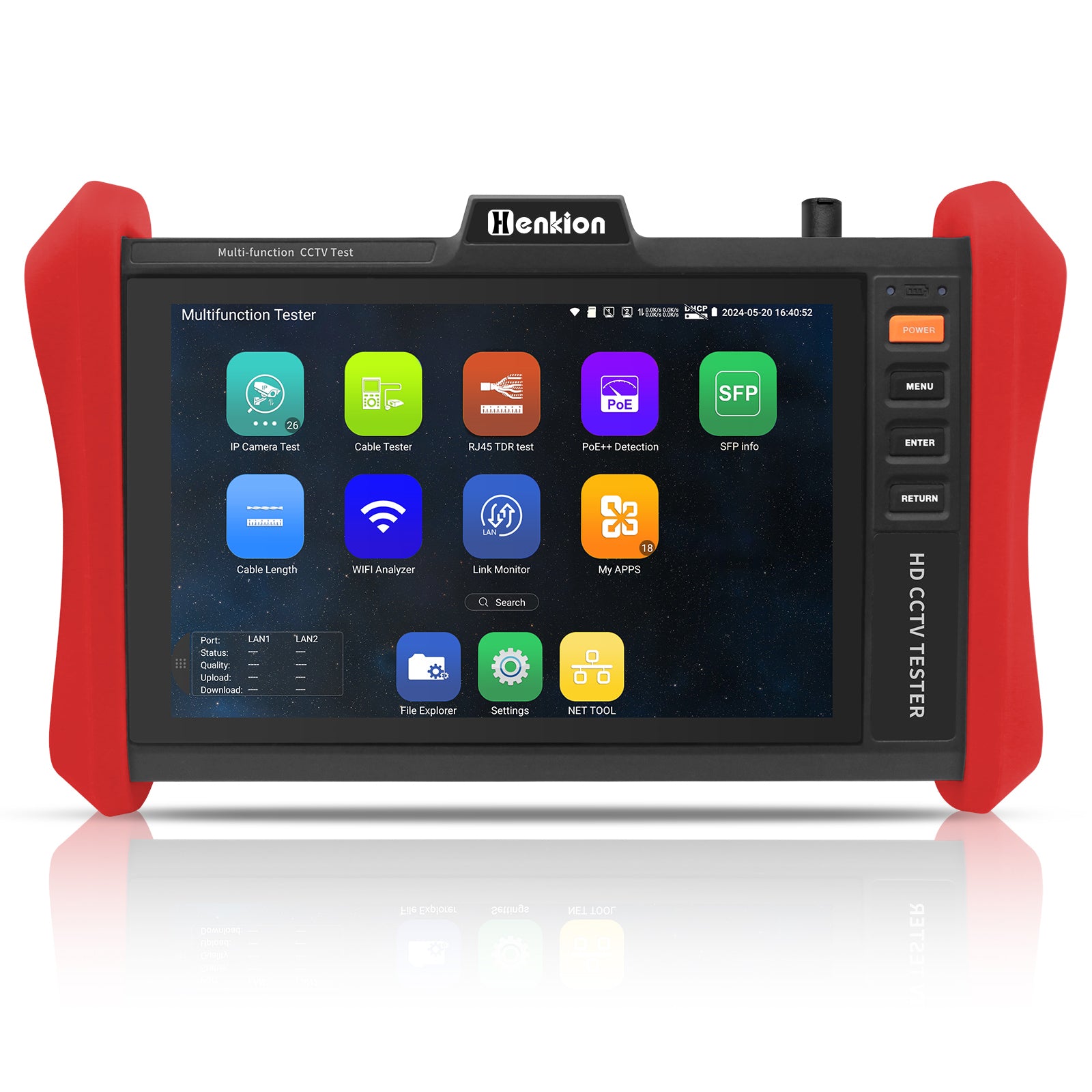

E88 |
| Operating system |
Android 10.0 |
| Display |

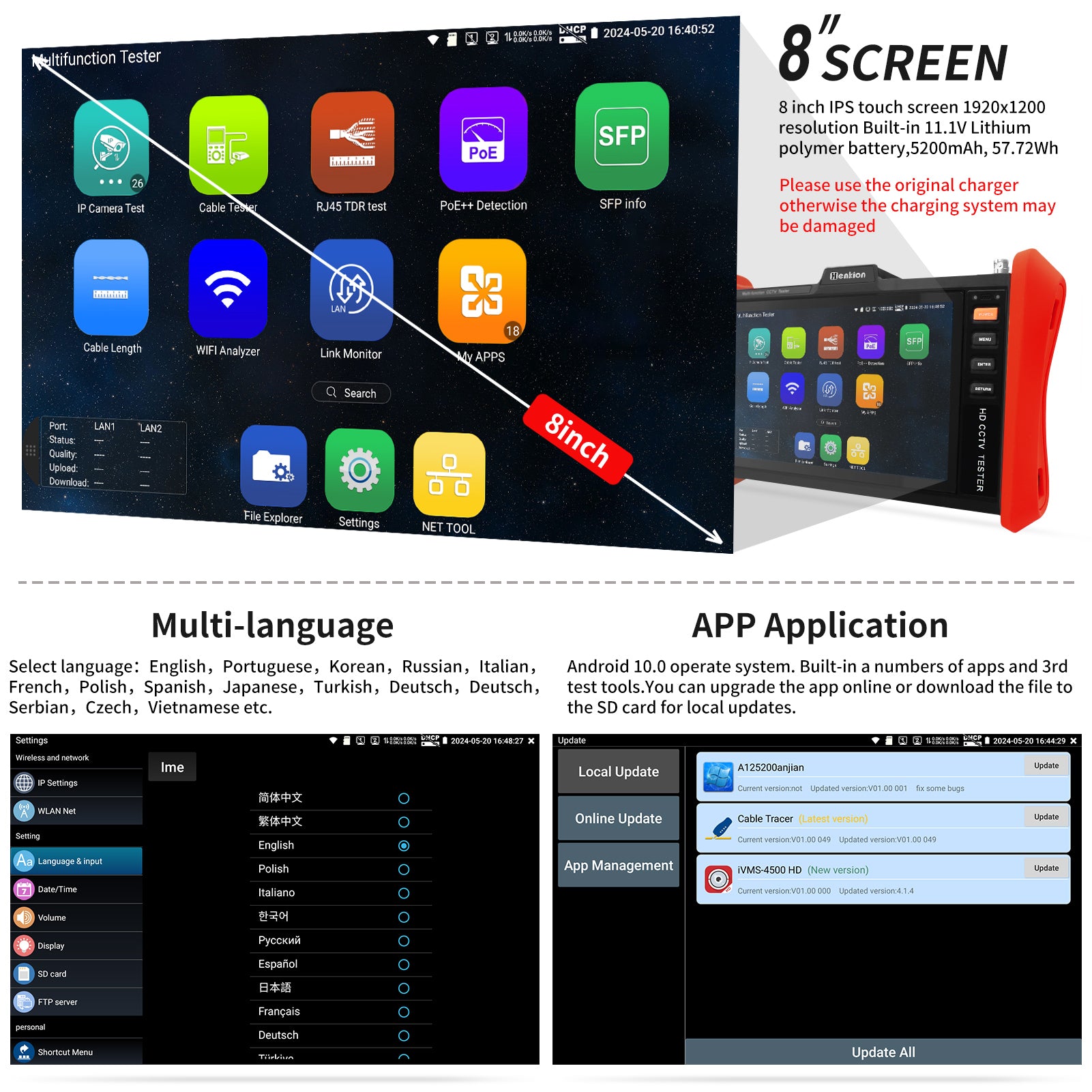

8 inch IPS touch screen, 1920x1200 resolution, Backlit buttons |
| Operation method |
Touch screen + keys |
| CPU |
1.6GHz, 4 cores |
| RAM(DDR) |
1GB |
| FLASH(EMMC) |
8GB |
|
IP camera test
|

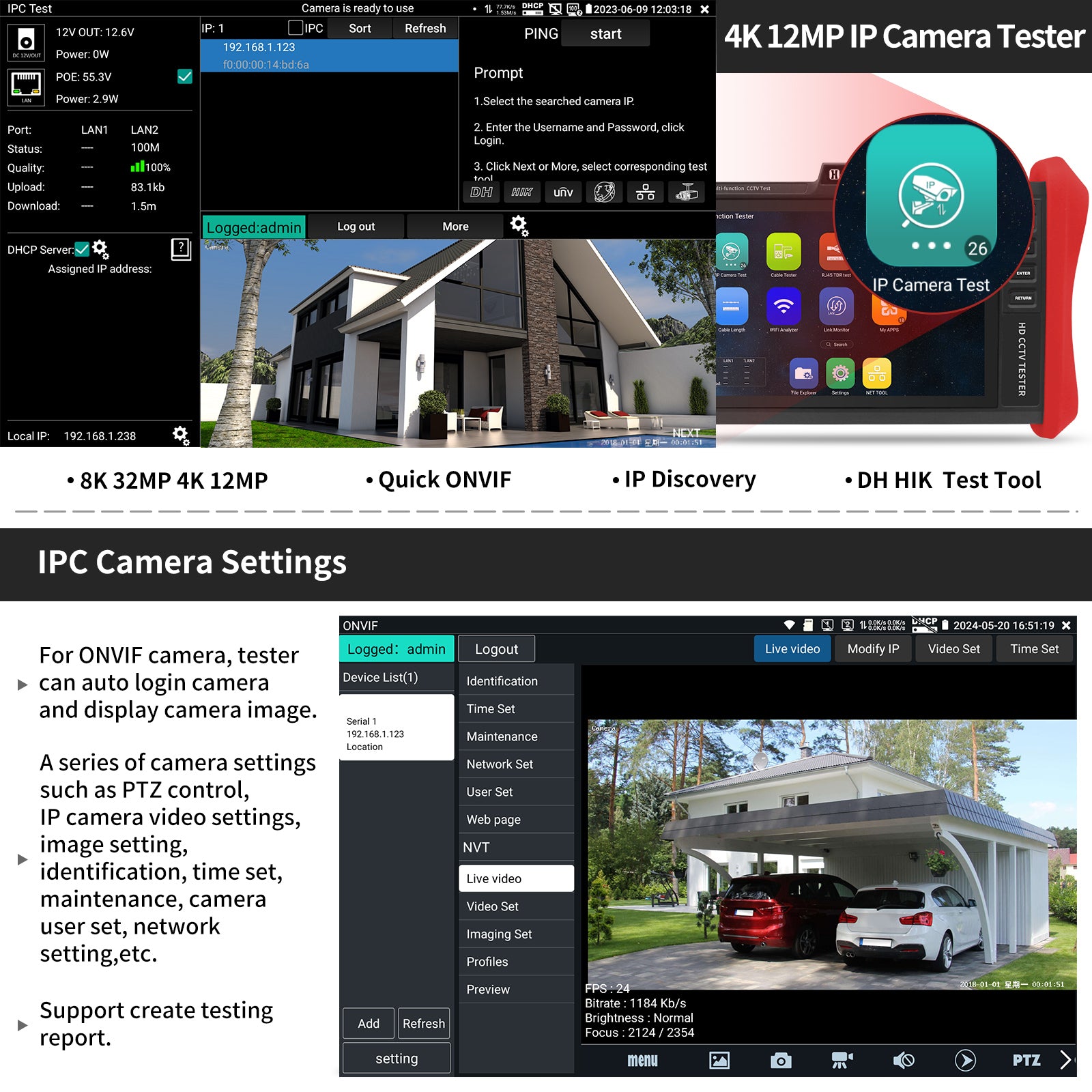

| Support max 4K 12MP IP camera test via main stream, Support ONVIF protocol |

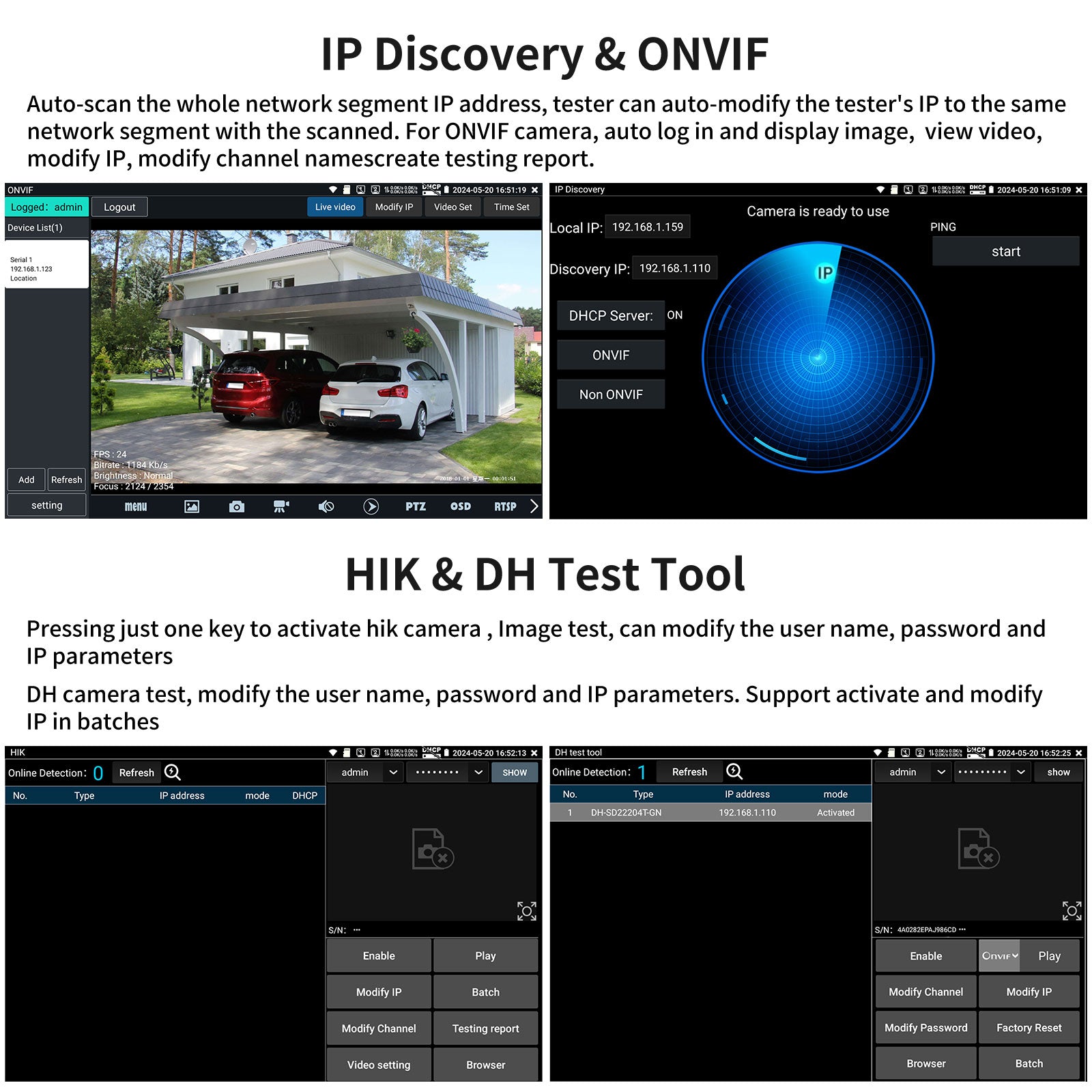

| IP Discovery/Quick ONVIF/IPC test /RTSP play /Client APK |
| Rapid Video: Auto view the video, create testing report |
| Hik test tool: support batch activate for Hikvision cameras and modify IP address, modify password etc. Self-defined modify channel name, can quickly change video, open wide dynamic mode. Factory restore, etc. |
| DH test tool: support batch activate for Dahua cameras and modify IP address, username and password. Self-defined modify channel name. |
|
|
Coaxial HD camera test
|
|
|
Coaxial test
|
| Analog video level test: N/A |
| PTZ control, RS485 control, Baud 600-115200bps, compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc |
|
| HDMI & VGA |
|
| Zoom Image |
4x zoom, enlarge image, Screen snapshot, record, save, view and record and play back |
| Power output |

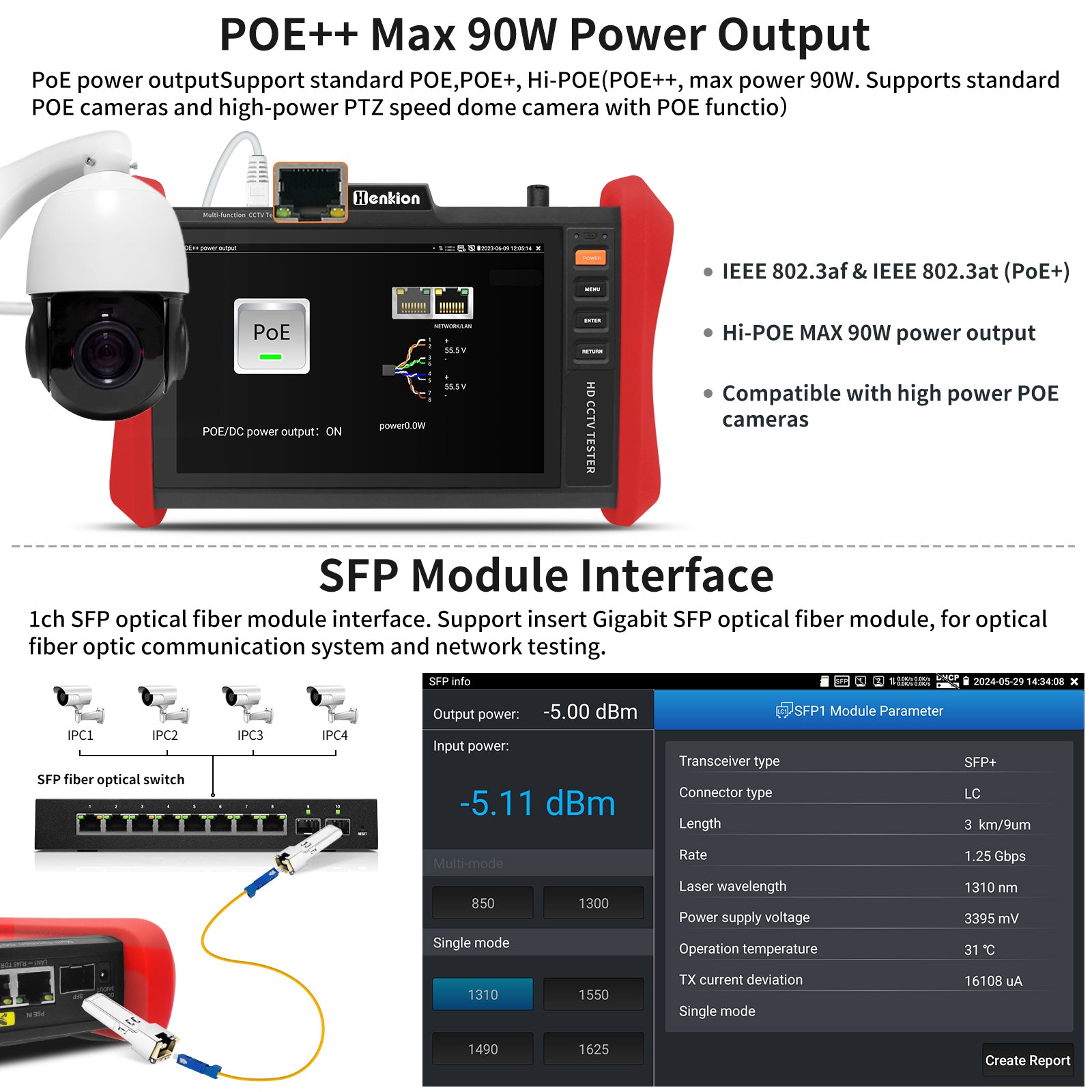

| PoE power output: Support standard POE,POE+,Hi-POE(POE++, max power 90W. Supports standard POE cameras and high-power PTZ speed dome camera with POE function) |
| DC5V/2A power output, powered USB canera and as power bank, and connect USB and Mouse, |
|
| Cable test |
Cable tracer: Not included
(You can purchase accessories to add this function.) |

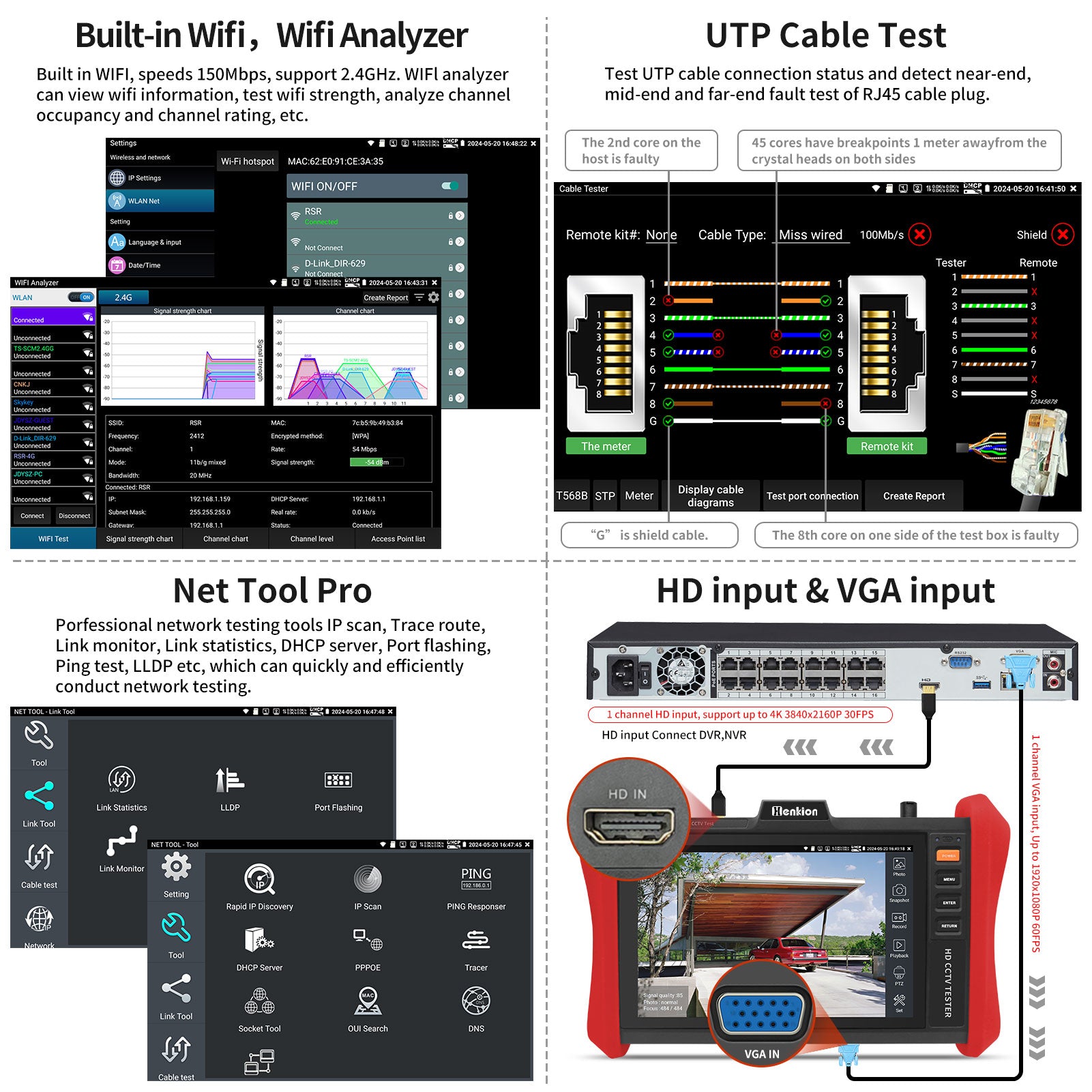

| UTP cable test: Test UTP cable connection status and display on the screen. Read the number on the screen, and detect near-end, mid-end and far-end fault test of RJ45 cable plug |

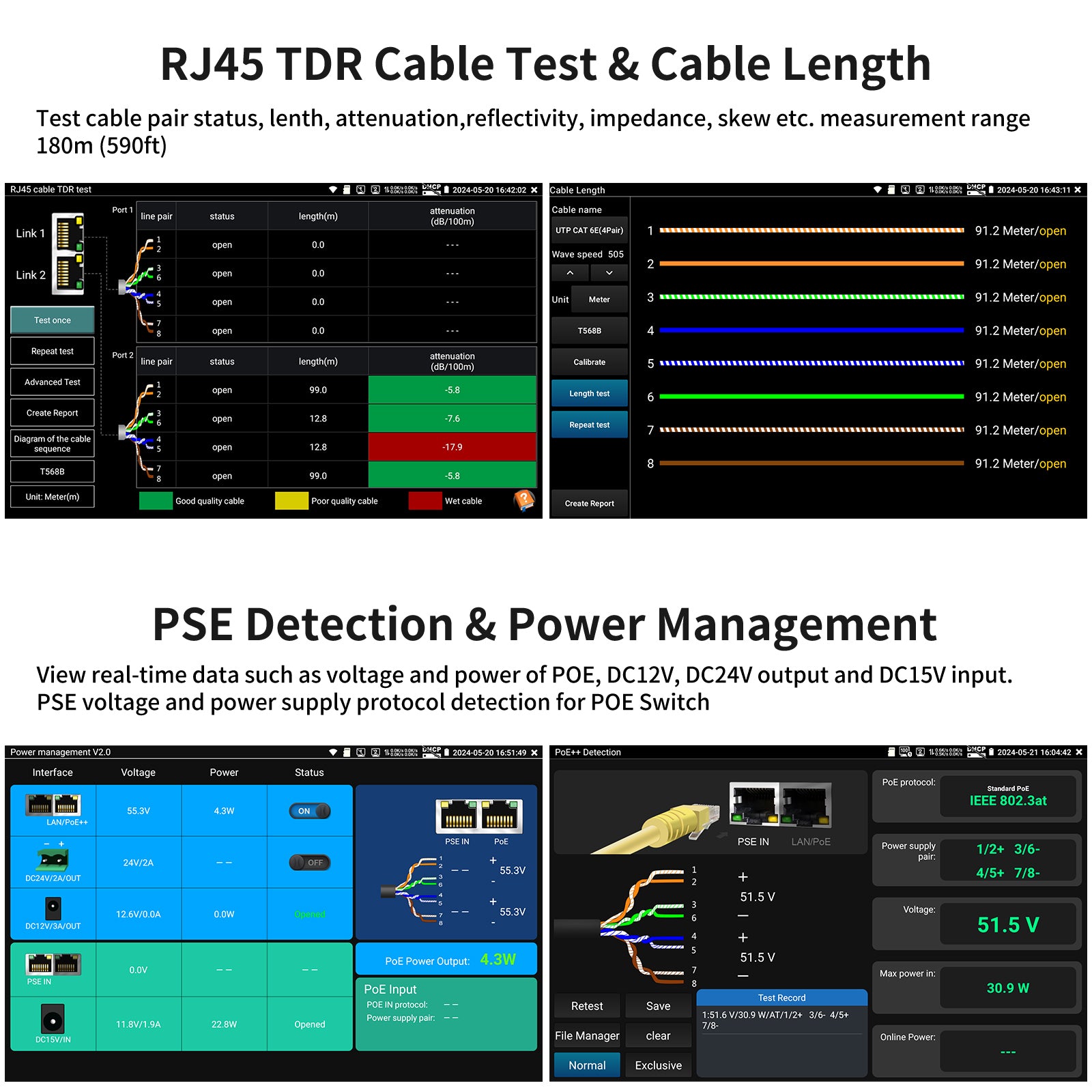

| RJ45 cable TDR test: Test cable pair status, length, attenuation, reflectivity, impedance, skew etc. measurement max range 180meter(590fts). |
| Cable length test: Measure the disconnection (open circuit status) position of BNC cables, network cables, telephone lines and other cables. The maximum test distance is 3KM(9842fts). Short circuit length detection is not supported. |
|
Digital Multimeter
(DMM) |
N/A |
Optical power meter
(OPM) |
N/A |
Visual fault locator
(VFL) |
N/A |

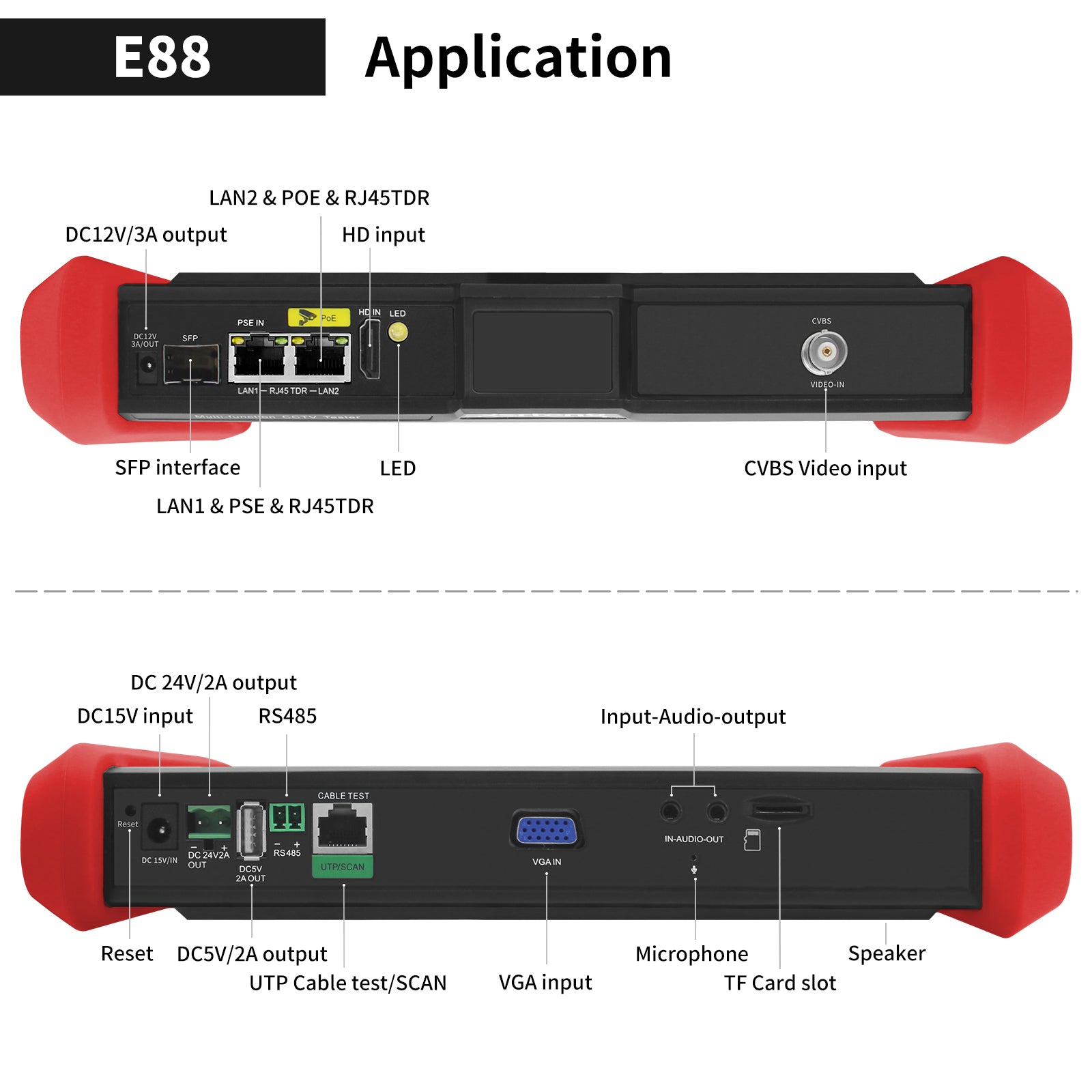

| Network interface |
Dual Gigabit Ethernet ports, RJ45, 10/100/1000M adaptive interface |
| Gigabit SFP |
1ch SFP optical fiber module interface, support insert Gigabit SFP optical fiber module, for optical fiber network testing |
| Network test |
Trace route, Link monitor, DHCP server, port flashing, Ping test |
| WiFi |
Built in WIFI, speeds 150Mbps, support 2.4GHz |
| WiFi analyzer |
Built-in WIFl analyzer can view wifi information, test wifi strength,analyze channel occupancy and channel rating, etc. |
| Built-in camera |
N/A |
| Laser Distance meter |
N/A |
| TesterPlay |
Screen projection: Tester, mobile phone and PC display at the same time (iOS devices not supported) |
| Audio test |
1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone |
| RS485 |
1ch, Support pan/tilt control, Baud 600-115200bps, compatible with more than 30 protocols such as for PELCO-D/P, for Samsung, for Panasonic, for Lilin, for Yaan etc |
| Data monitor |
Captures and analyzes the command data from controlling device, also can send hexadecimal |
| Power management V2.0 |
View real-time data such as voltage and power of POE, DC12V, DC24V output and DC12V input. PSE voltage and power supply protocol detection for POE Switch |
| POE/PSE detect |
Quickly detect the PoE switch port status, display the power supply voltage and line connection status, and support PoE protocol standard 802.3at/af or non-standard detection. |
| Drop-down menu |
You can select PoE power switch, IP setting, CVBS, LAN info, HDMI IN functions etc in any interface |
| Operation setting |
OSD menu, select your desired language: English, Portuguese, Korean, Russian, Italian, French, Polish, Spanish, Japanese, Turkish, Deutsch, Serbain, Czech, Vietnamese etc |
| Screen blackout protective cover |
N/A |
| External power supply |
DC15V/1.6A |
| Battery |
Built-in 11.1V Lithium polymer battery, 5200mAh, 57.72Wh |
| Rechargeable |
After fast charging 3.5 hours, normal working time 11 hours(Without supplying power to other devices) |
| Auto off |
5 to 30 (mins) |
| Working Temperature |
'-10℃ to +50℃ (14℉ to 122℉) |
| Working Humidity |
30% to 90% |
| Dimension/Weight |
Tester: 275x170x48mm(10.83x6.7x1.89inch) / 1090g(2.4lbs)
Package: 320x290x100mm(12.6x11.4x3.94inch) / 2040g(4.5lbs) |
